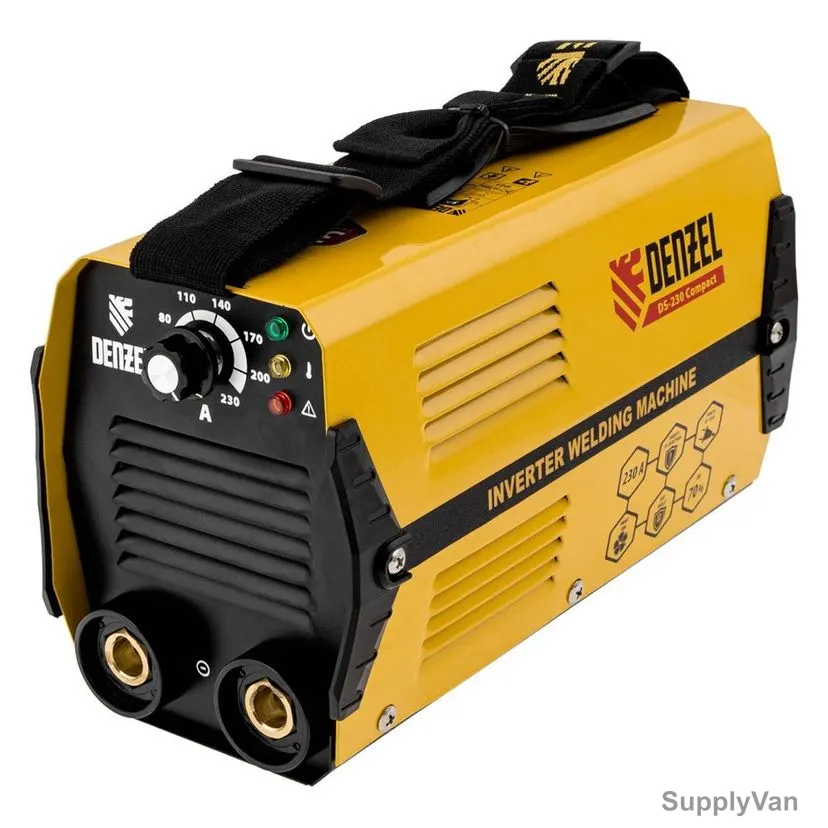

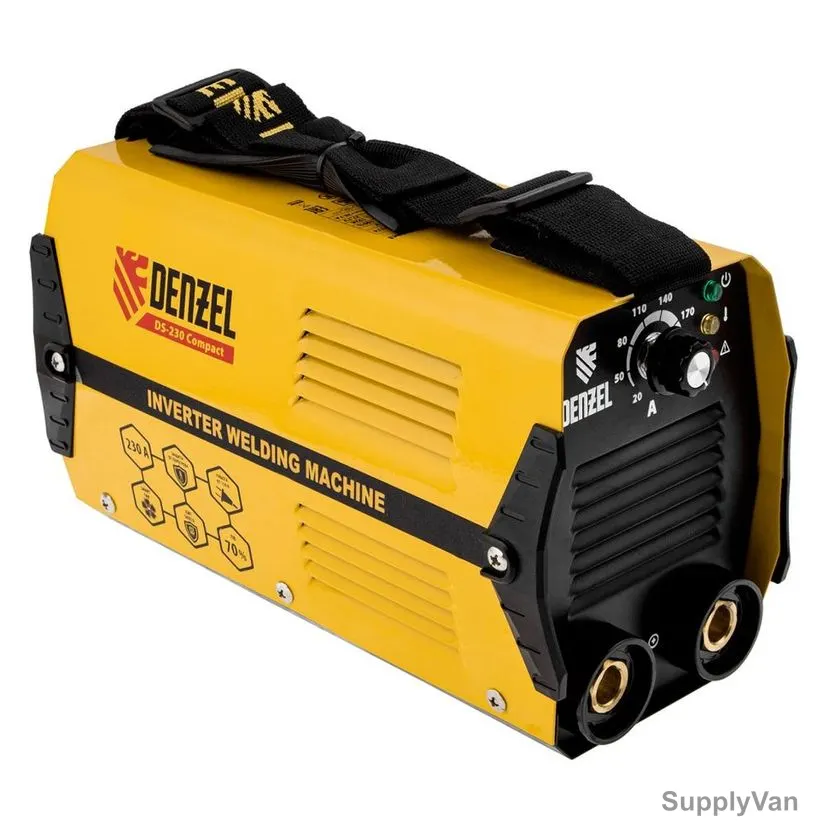

Denzel Compact Inverter Arc Welding Machine, DS-230, 7900W, 230A, 1.6 to 5MM Electrode Dia
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Specifications
| SV Code | 776418529857 |
| Brand | Denzel |
| Category | Electrode Welding Machines |
| Unit | Piece |
| Brand Origin (not manufacture) | United States |
| Color | Yellow and Black |
| Voltage | 230 VAC |
| Ingress Protection | IP21 |
| Wattage | 7900 W |
| Operational Voltage | 150-250 VAC |
| Electrode Diameter | 1.6-5 mm |
| Open Circuit Voltage | 50 V |
| Frequency | 50 Hz |
| Current | 230 A |
| Packing Type | Cardboard Box |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The Denzel DS-230 Compact Inverter Arc Welding Machine with a maximum current of 230A has an on-time of 70% and works with electrodes with a diameter of 1.6-5 mm. It is used for welding steel structures up to 14 mm thick, it will be useful in a workshop, garage or country house. It is easy to operate, a novice user can easily cope with it. The machine is able to work even at low input voltage of 150V, has a high duty cycle of 70% and cools down quickly, which reduces the operating time and increases the welding efficiency.
Features

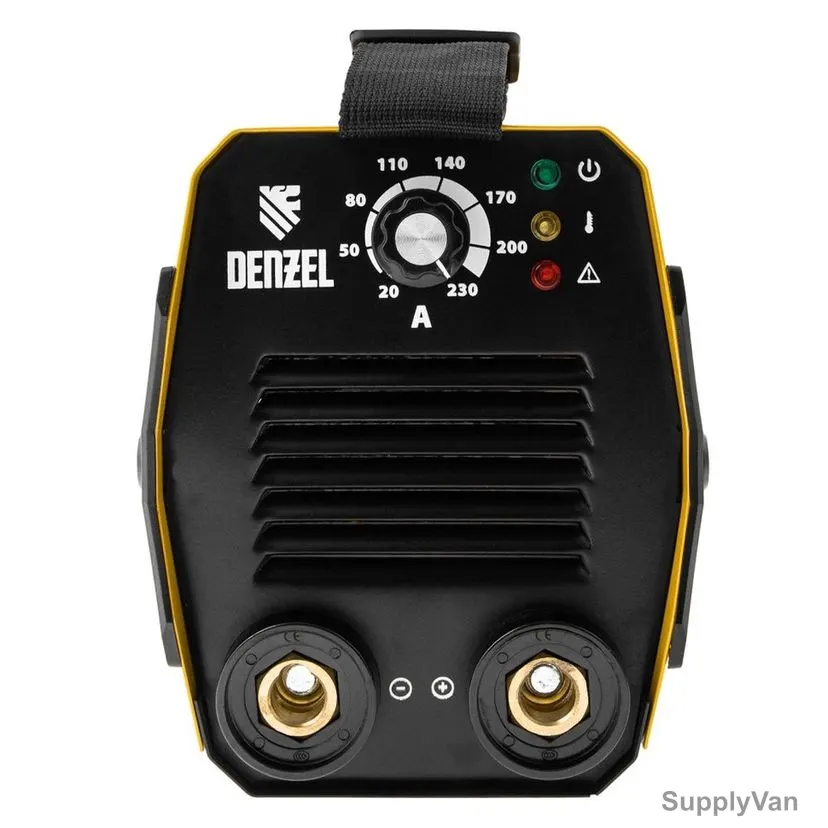

- Smooth and Precise Adjustment: Using the rotary control, you can change the amount of welding current to work with electrodes of different diameters
- Quick Start: Light ignition (Hot Start) helps to strike the arc and increases the stability of its burning
- High Quality Welding: Arc force (Arc Force) prevents it from breaking during operation
- Electrode Anti-Sticking: The Anti Stick function makes it easy to separate the electrode from the metal without damaging the coating
- Protection of Power Components (IGBT Shield): The device automatically turns off in case of overload or short circuit, preventing damage to the board elements
- Reliability: The board is varnished to protect it from dust, and the insulating plate eliminates the possibility of a breakdown between the heat sink and the case
- Resistance to External Influences: The device has a degree of protection IP21 and is not afraid of the penetration of drops of water and small objects

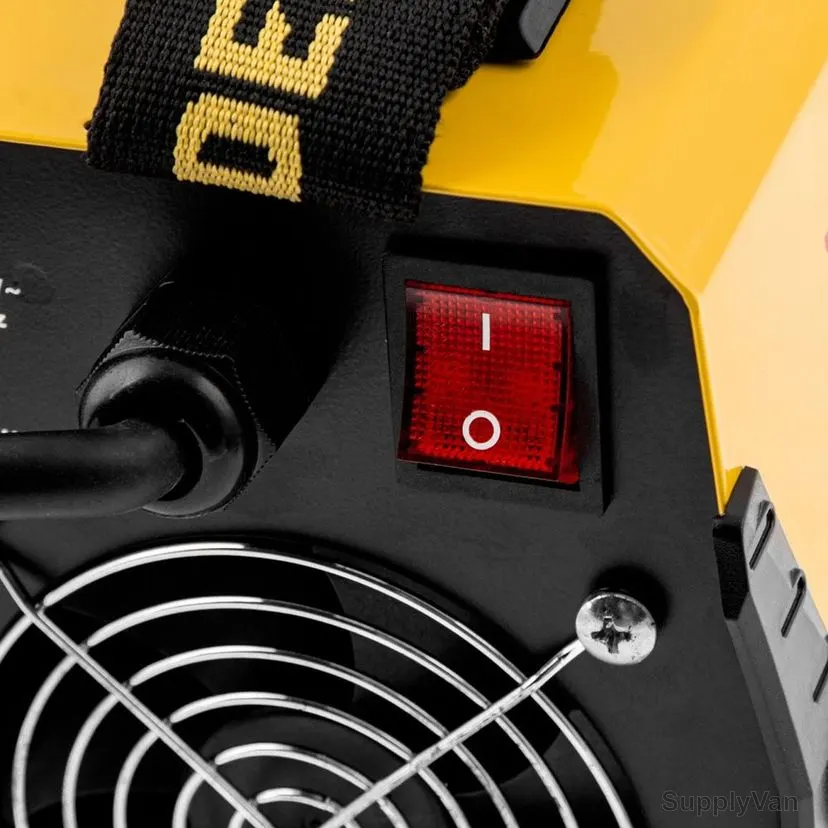

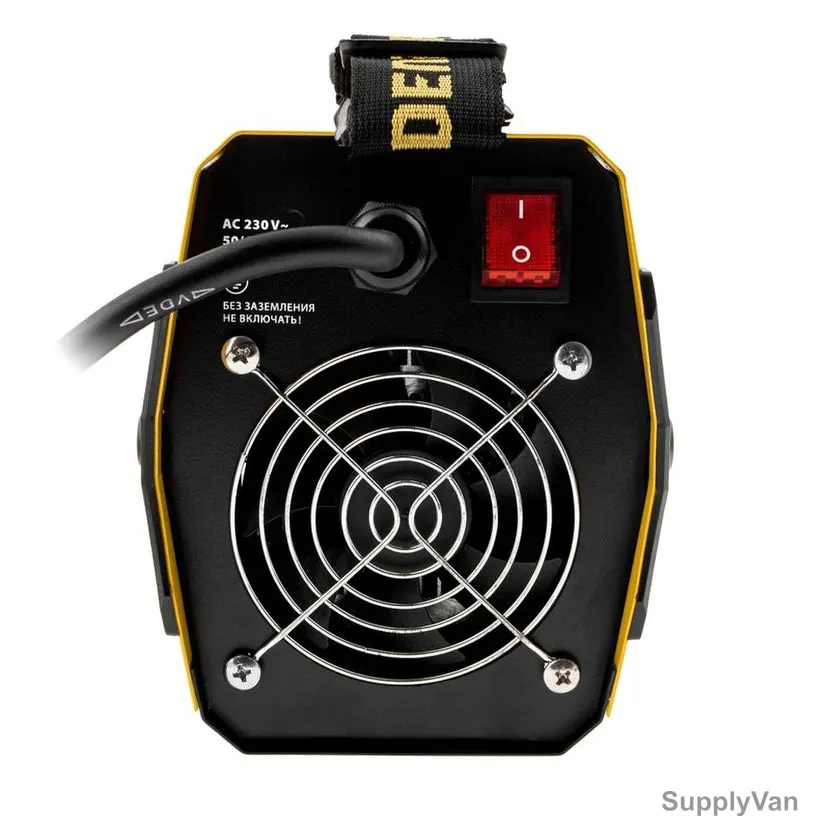

- Low Noise: The Smart Fan system automatically turns off the fan when the temperature of the power components is below 40 degrees and idle for 4 minutes
- Improved Cooling: The guide plate provides effective ventilation, which contributes to the stable operation of the machine
- High-Quality Power Cable: A soft power cord 1.5 m long with PVC insulation does not tan in the cold
- Comfortable Work: The product weighs only 3.4 kg and is equipped with a shoulder strap, so it is convenient to move it

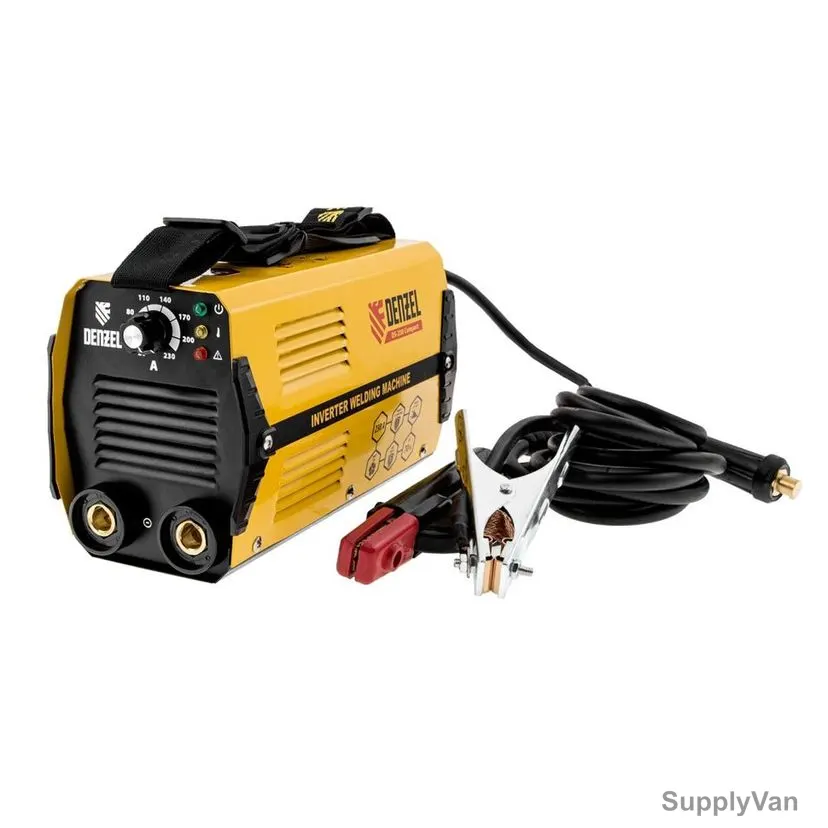

- Cable Length with Ground Terminal: 1.2 Mtrs
- Cable Length with Electrode Holder: 1.8 Mtrs
- Switching time at maximum current: 70%
