Denzel Compact Inverter Arc Welding Machine, DS-180, 5800W, 180A, 1.6 to 4MM Electrode Dia

Name: Denzel Compact Inverter Arc Welding Machine, DS-180, 5800W, 180A, 1.6 to 4MM Electrode Dia
Brand: Denzel
SKU: denzel-ds-180
Price: 239.50 AED
Availability: InStock

SV Code: 726617175917

AED 429.00/ Piece

Price includes VATMore Details

In stock — ships today

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	726617175917
Brand	Denzel
Category	Electrode Welding Machines
Unit	Piece
Brand Origin (not manufacture)	United States
Color	Yellow and Black
Voltage	230 VAC
Ingress Protection	IP21
Wattage	5800 W
Operational Voltage	150-250 VAC
Electrode Diameter	1.6-4 mm
Open Circuit Voltage	50 V
Frequency	50 Hz
Current	180 A
Packing Type	Cardboard Box
Delivery	On our shelf and ready to go out today.

Description

The Denzel DS-180 Compact Inverter Arc Welding Machine with a maximum current of 180A has an on-time of 70% and works with electrodes with a diameter of 1.6-4mm. It is used for welding steel structures, it will be useful in a workshop, garage or country house. Easy to use and suitable even for a beginner. The machine is able to work even at low input voltage of 150V, has a high duty cycle of 70% and cools down quickly, which increases the speed and efficiency of welding.

Features

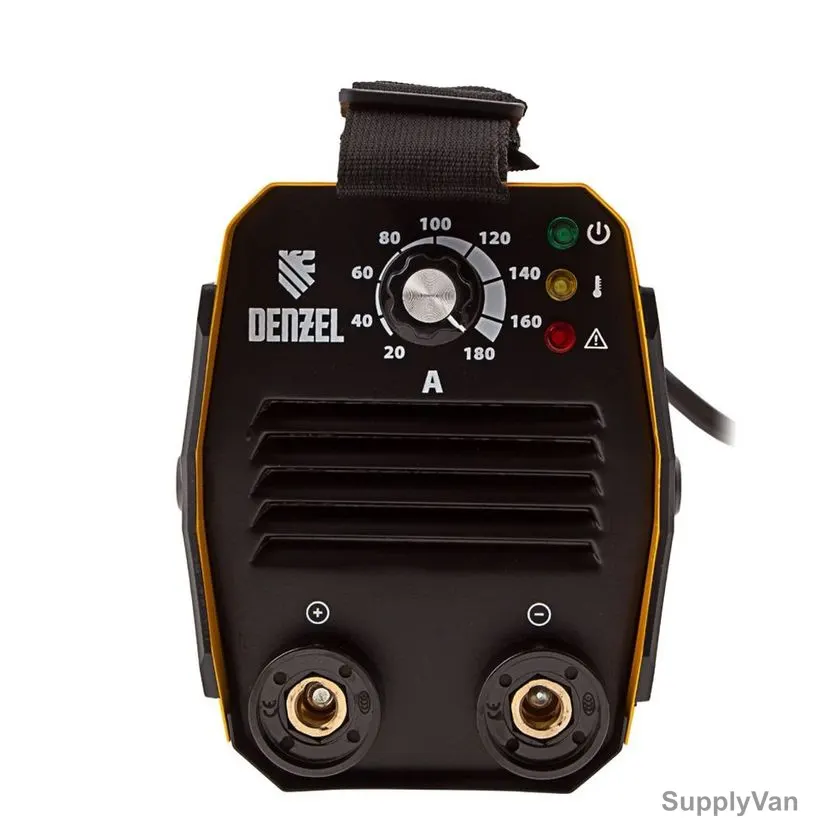

Smooth and Precise Adjustment: Using the rotary control, you can change the amount of welding current to work with electrodes of different diameters
Quick Start: Light ignition (Hot Start) helps to strike the arc and increases the stability of its burning
High Quality Welding: Arc force (Arc Force) prevents it from breaking during operation
Electrode Anti-Sticking: The Anti Stick function makes it easy to separate the electrode from the metal without damaging the coating
Protection of Power Components (IGBT Shield): The device automatically turns off in case of overload or short circuit, preventing damage to the board elements
Reliability: The board is varnished to protect it from dust, and the insulating plate eliminates the possibility of a breakdown between the heat sink and the case
Resistance to External Influences: The device has a degree of protection IP21 and is not afraid of the penetration of drops of water and small objects

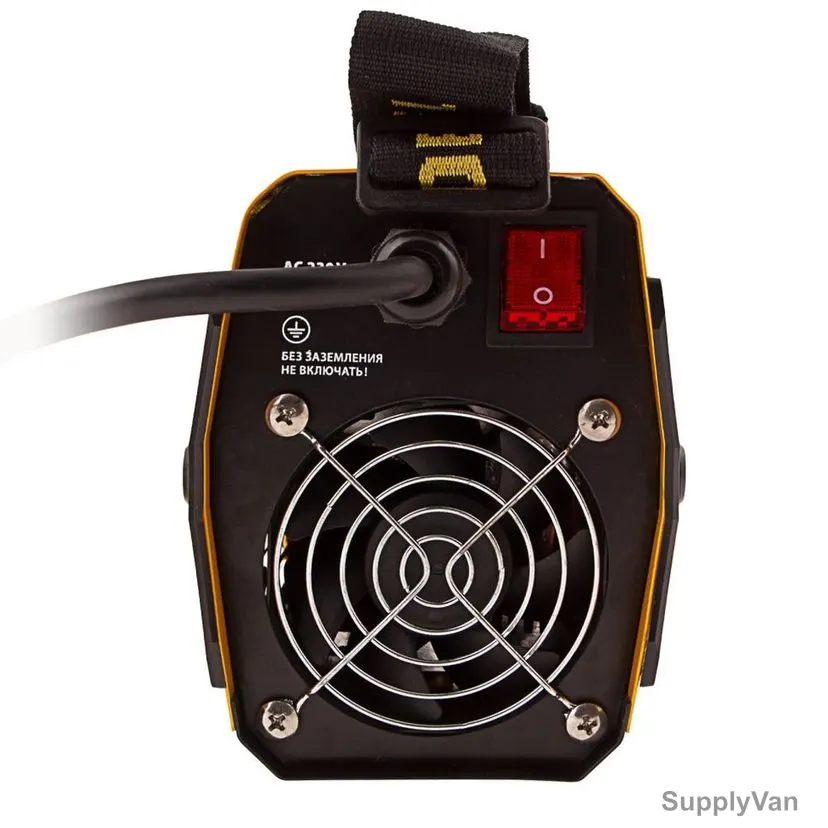

Improved Cooling: The guide plate provides effective ventilation, which contributes to the stable operation of the machine

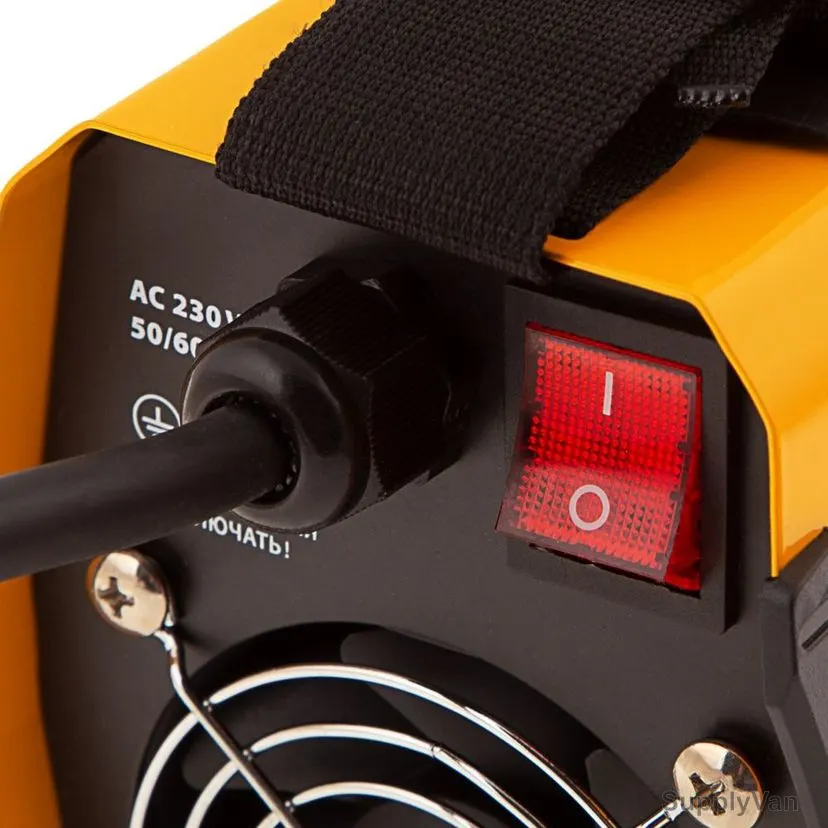

High-Quality Power Cable: A soft power cord 1.5 m long with PVC insulation does not tan in the cold
Comfortable Work: The product weighs only 3.4 kg and is equipped with a shoulder strap, so it is convenient to move it

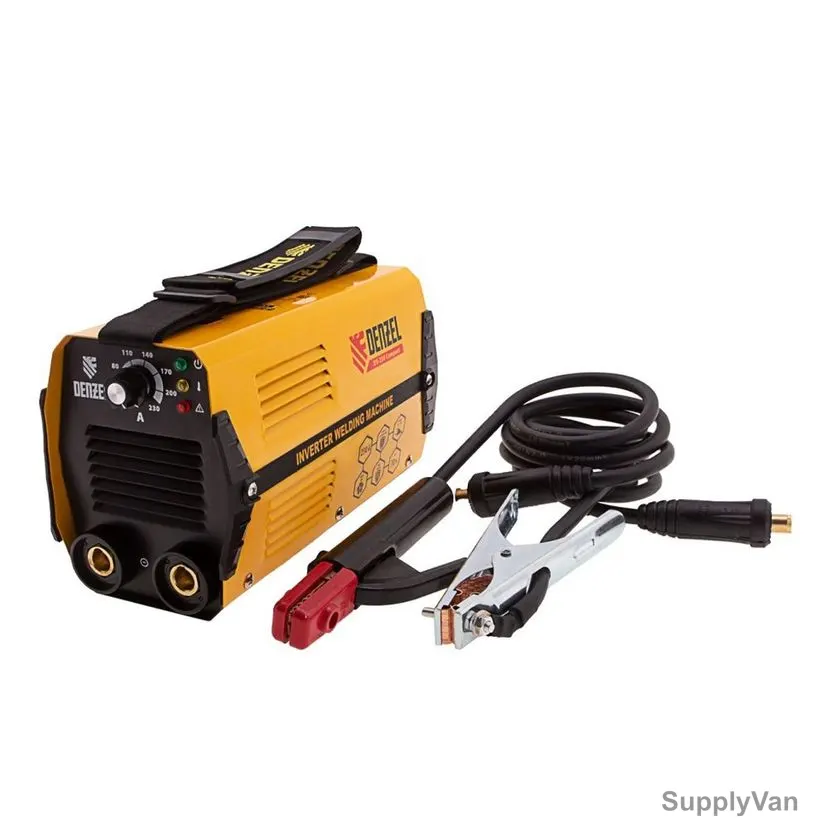

Cable Length with Ground Terminal: 1.2 Mtrs
Cable Length with Electrode Holder: 1.8 Mtrs
Switching time at maximum current: 70%
