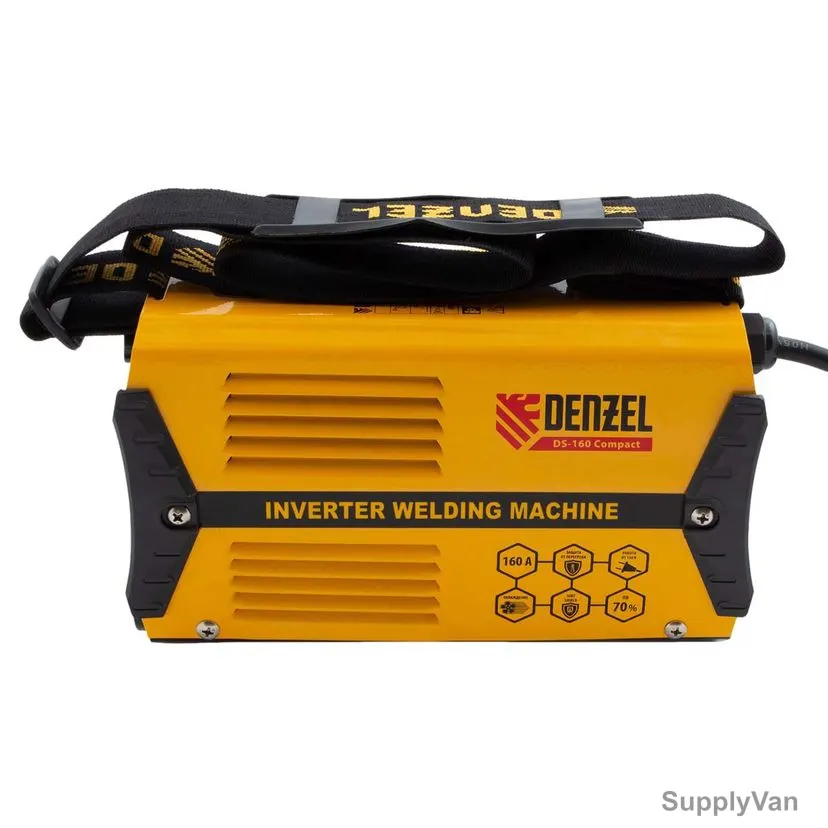

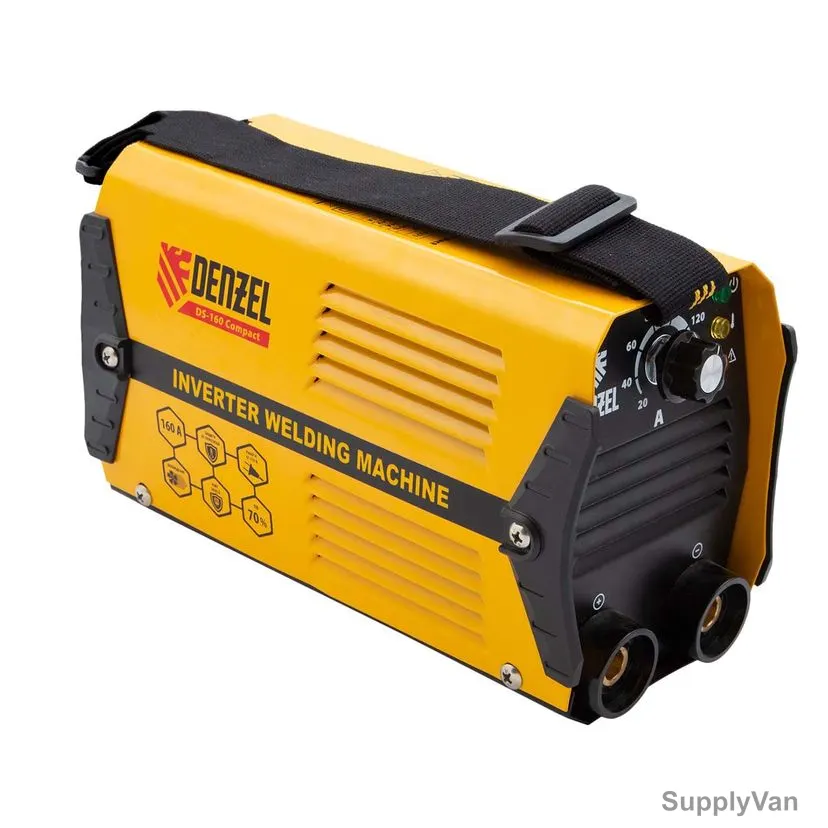

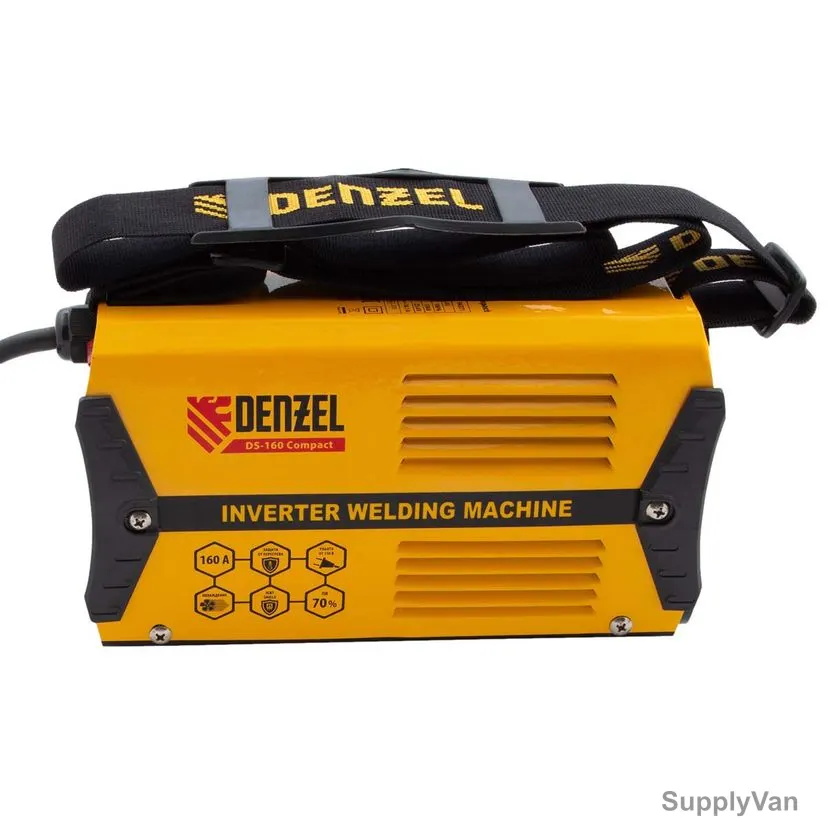

Denzel Compact Inverter Arc Welding Machine, DS-160, Single Phase, 5 kW, 160A
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Specifications
| SV Code | 477515936956 |
| Brand | Denzel |
| Category | Electrode Welding Machines |
| Unit | Piece |
| Brand Origin (not manufacture) | United States |
| Color | Yellow and Black |
| Voltage | 230 VAC |
| Special Features | Anti-Stick Electrode (Anti Stick), Arc Force (ArcForce), Easy Arc Ignition (Hot Start) |
| Ingress Protection | IP21 |
| Certification | EAC |
| Power Source Type | Electric |
| Phase | Single |
| Operational Voltage | 150-250 VAC |
| Power | 5 kW |
| Electrode Diameter | 3.2 mm |
| Insulation Class | F |
| Open Circuit Voltage | 50 V |
| Current | 160 A |
| Cooling Media | Air Forced |
| Packing Type | Cardboard Box |
| Delivery | On our shelf and ready to go out today. |
Description
The Denzel DS-160 Compact Inverter Arc Welding Machine with a maximum current of 160A has an on-time of 70% and works with electrodes with a diameter of 1.6-3.2 mm. Designed for welding steel structures, it will also help you quickly master welding. It will be useful for professionals and amateurs in the workshop, country house or garage. The device can operate even with an input voltage of 150 V, and a high duty cycle of 70% and rapid cooling increase the speed and efficiency of welding.
Features

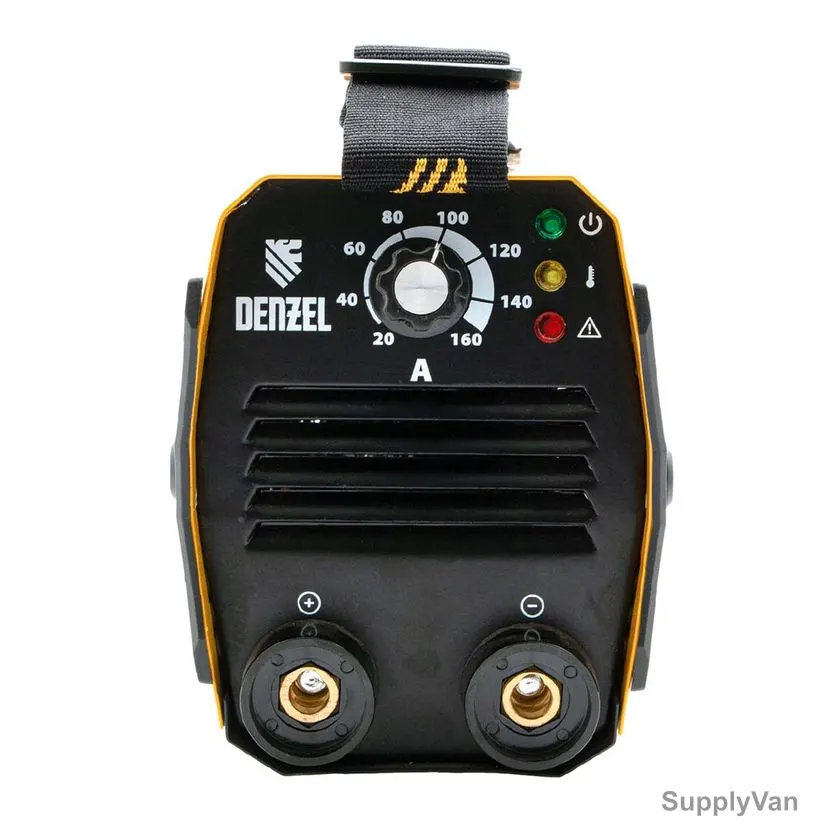

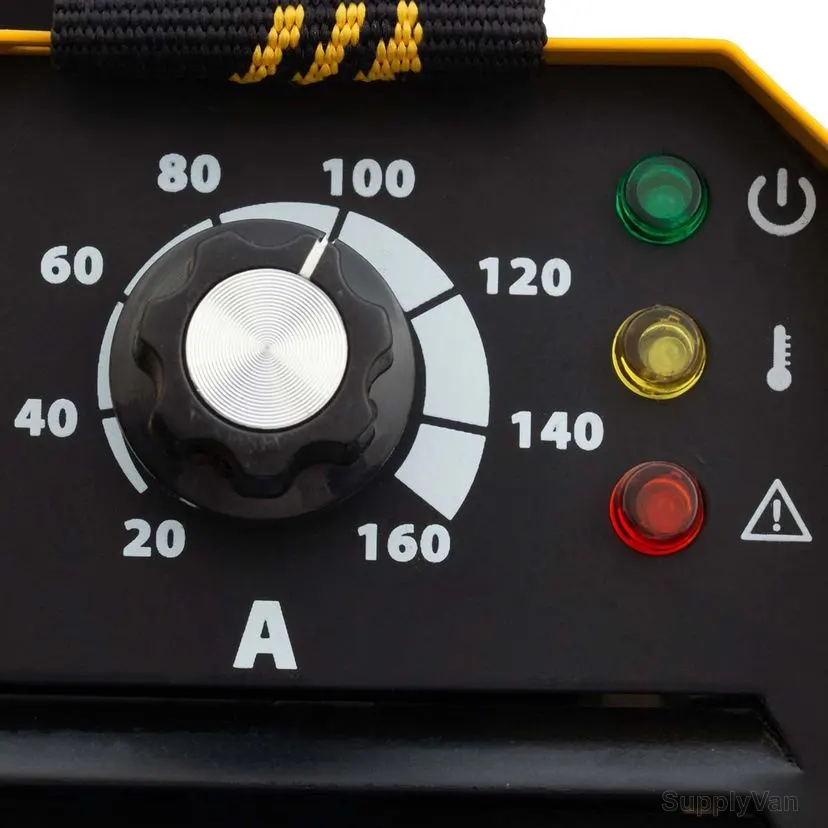

- Smooth and Precise Adjustment: Using the rotary control, you can change the welding current to work with electrodes of different diameters
- Quick Start: Easy ignition (Hot Start) helps ignite the arc and increases the stability of its combustion
- High Quality Welding: Arc Force prevents arc breakage during operation
- Anti-Sticking of the Electrode: The Anti Stick function allows you to easily separate the electrode from the metal without damaging the coating
- Protection of Power Components (IGBT Shield): The device automatically turns off when overloaded or short circuited, preventing damage to board elements
- Reliability: The board is coated with varnish that protects it from dust, and the insulating plate eliminates the possibility of a breakdown between the radiator and the case
- Resistance to External Influences: The device has a degree of protection IP21 and is not afraid of the penetration of water drops and small objects

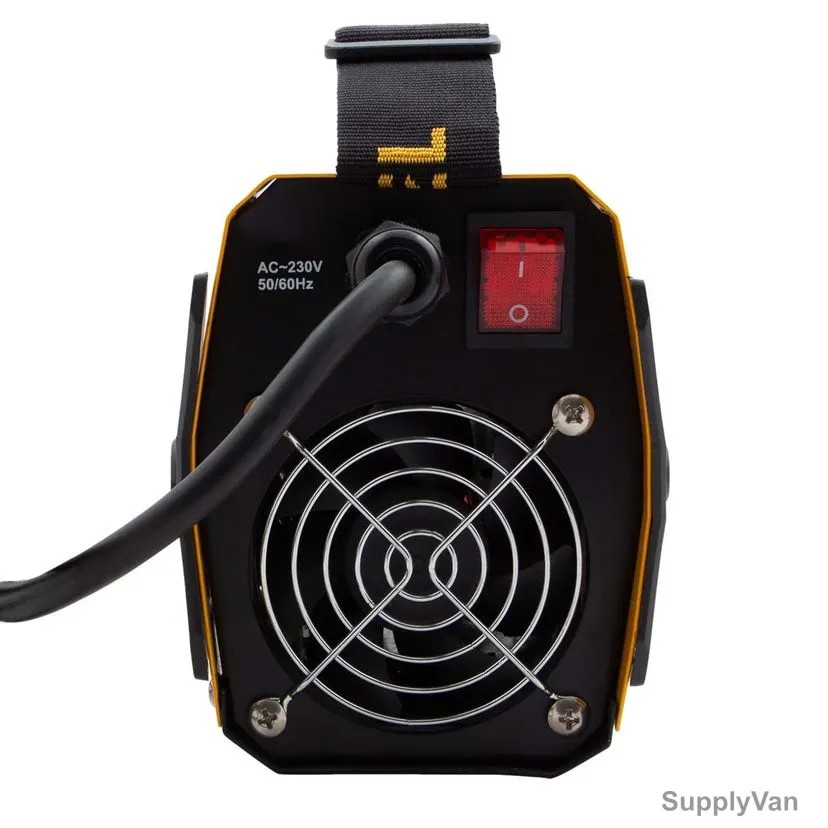

- Improved Cooling: The guide plate provides efficient ventilation, which contributes to the stable operation of the machine
- High-Quality Power Cable: A soft power cord 1.5 m long with PVC insulation does not become dull in the cold.

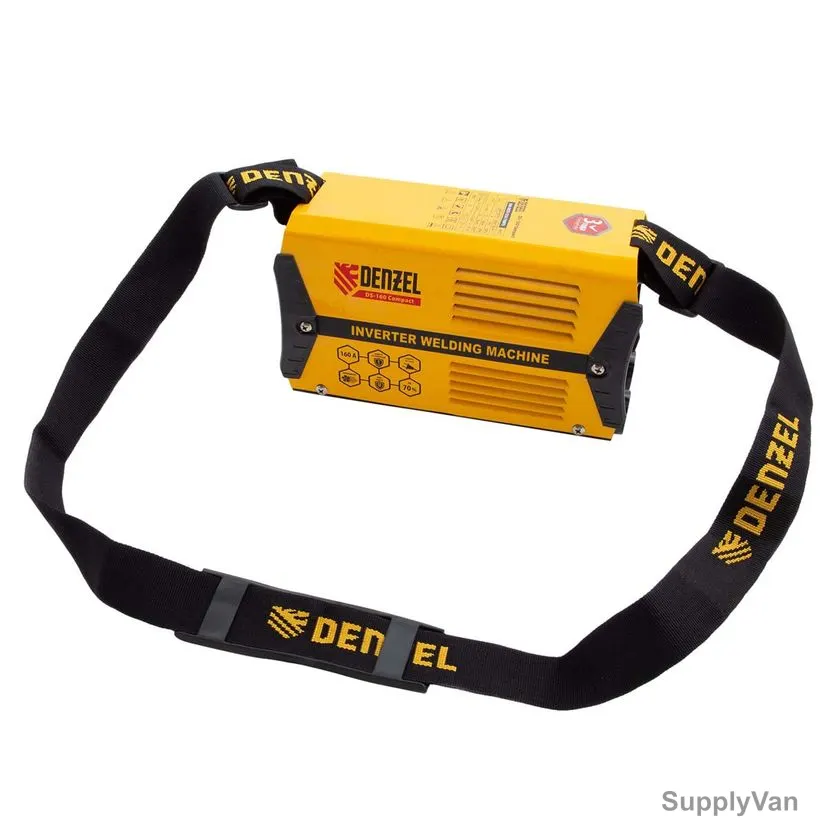

- Comfortable Operation: The product weighs only 3.4 kg and is equipped with a shoulder strap, so it is easy to move
- Duration of Switching on at Maximum Current: 70%

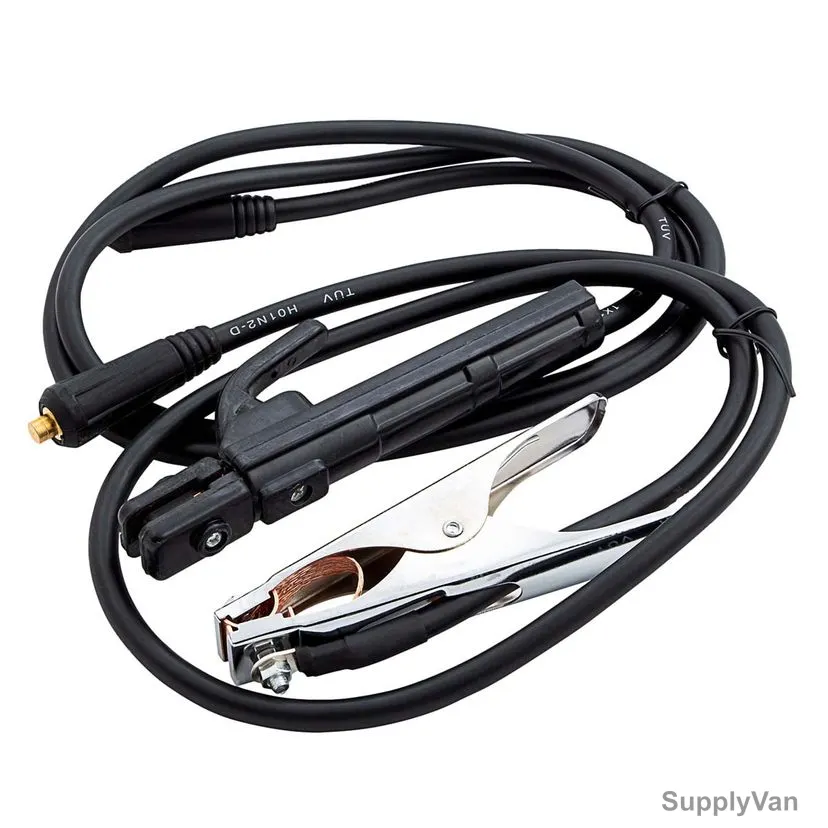

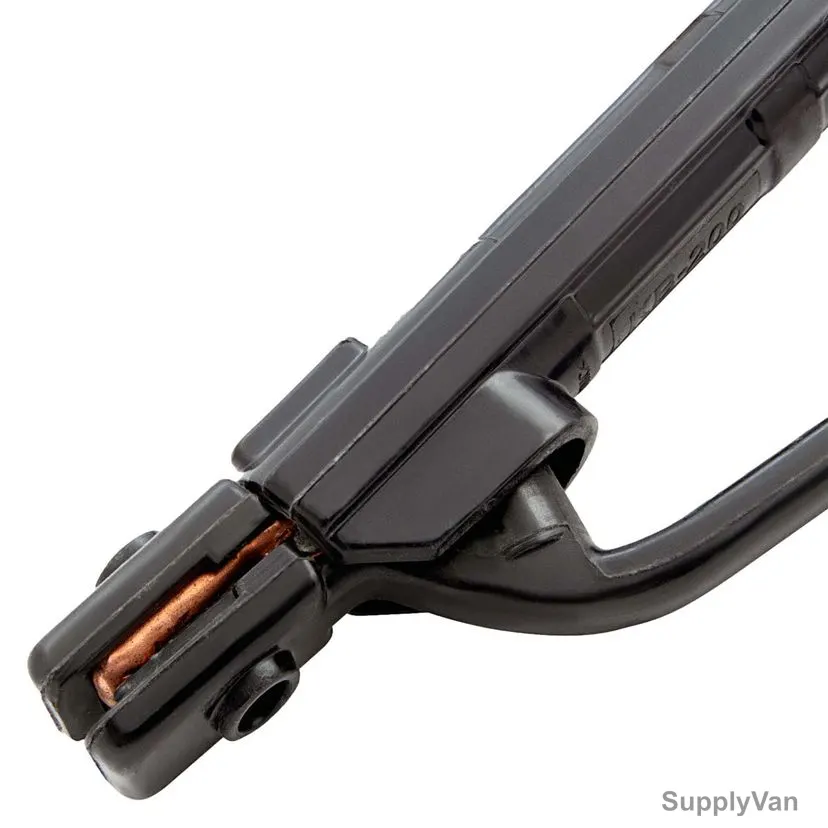

- Cable Length with Electrode Holder: 1.8 Mtrs

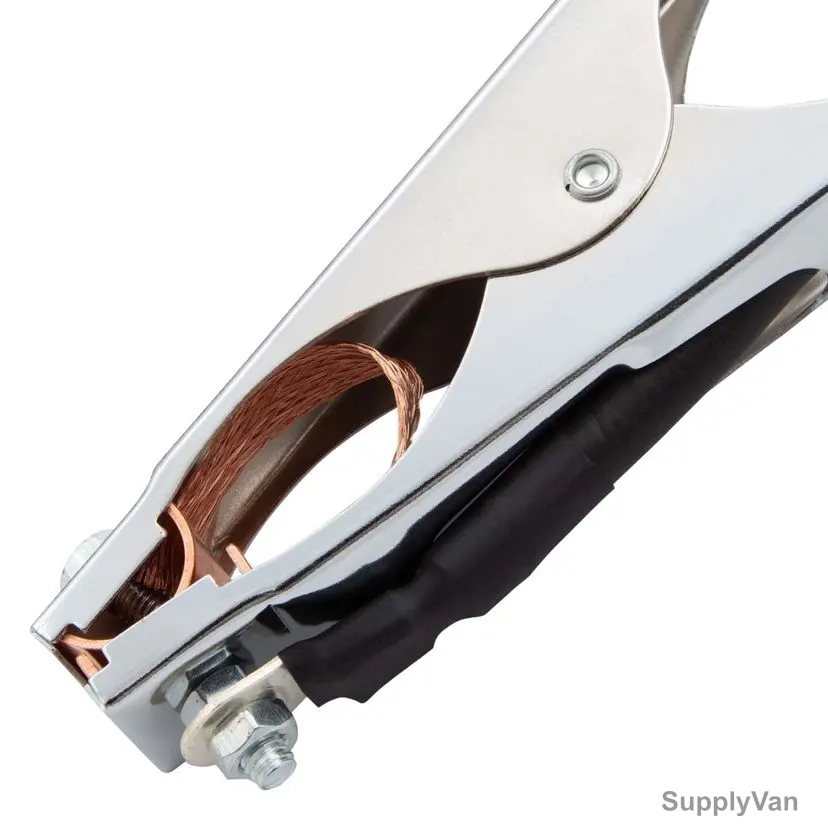

- Cable Length with Grounding Terminal: 1.2 Mtrs
- Operation at Reduced Voltage: Up to 190V

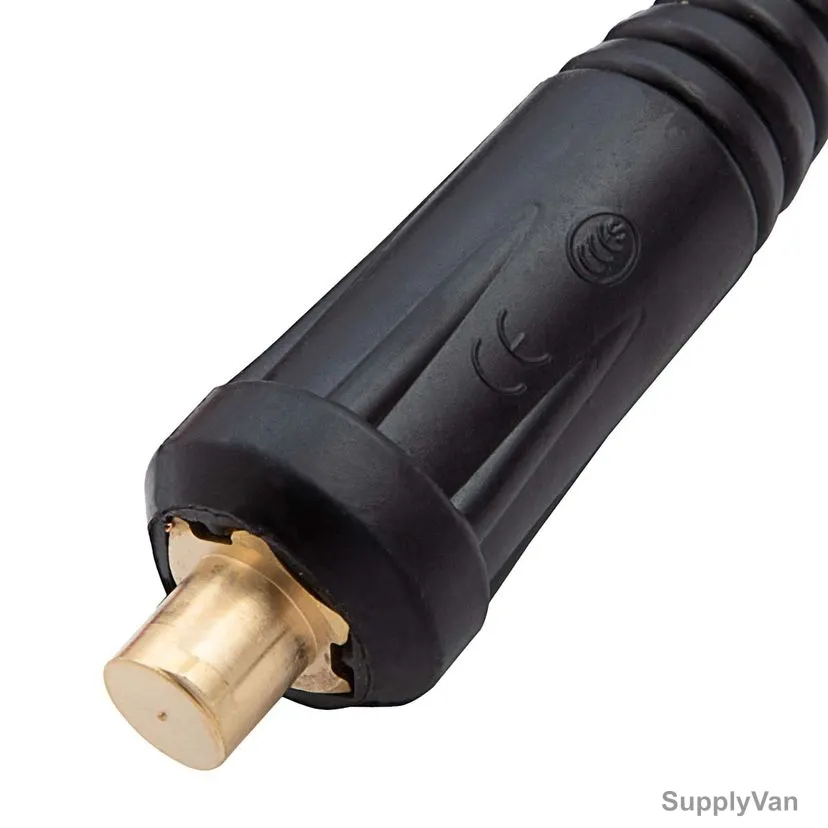

- MMA Connector Type: DKJ10-25
