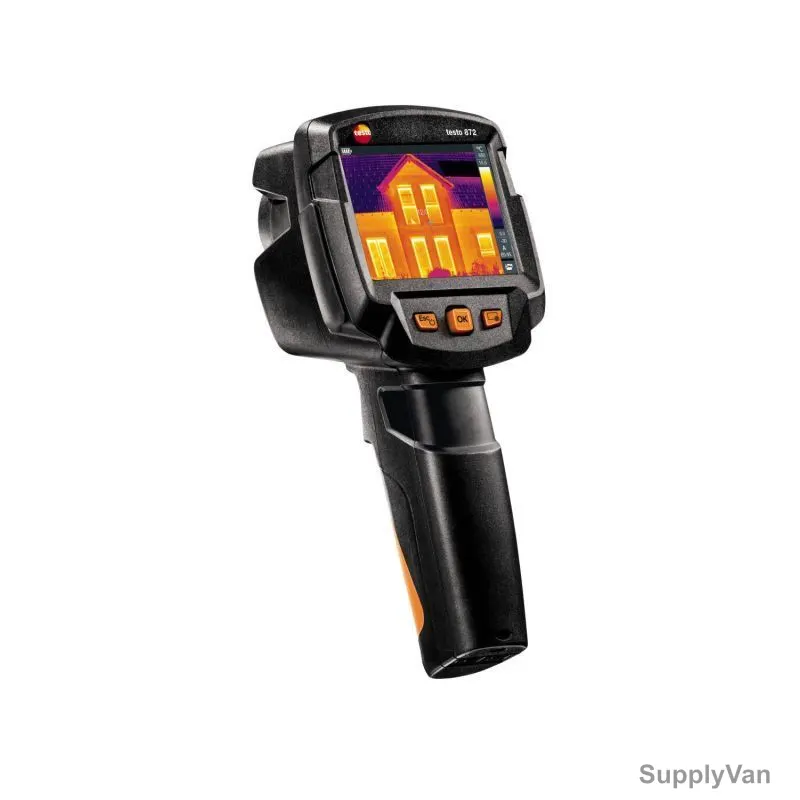

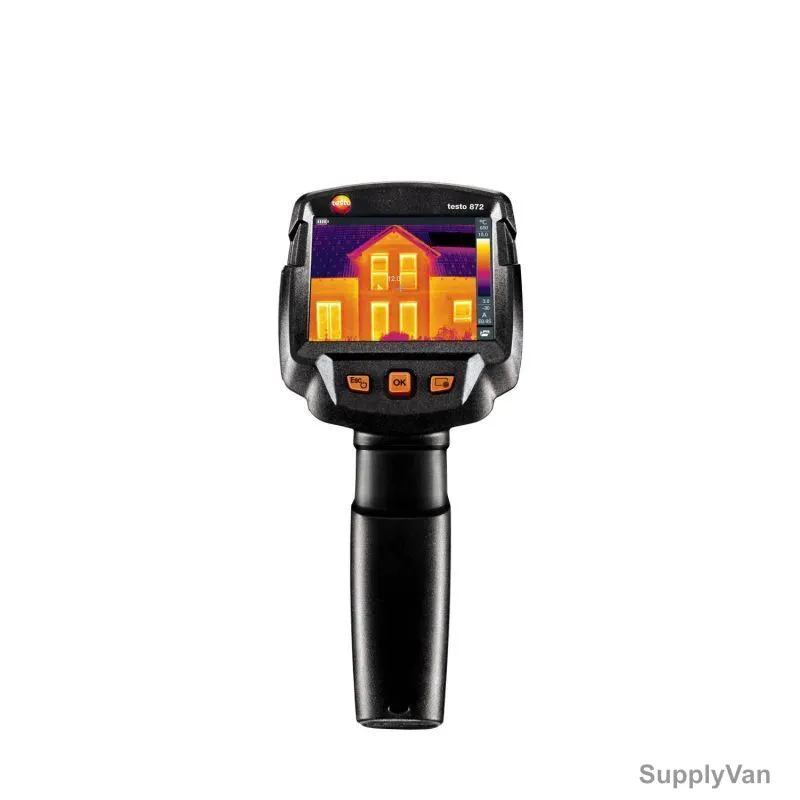

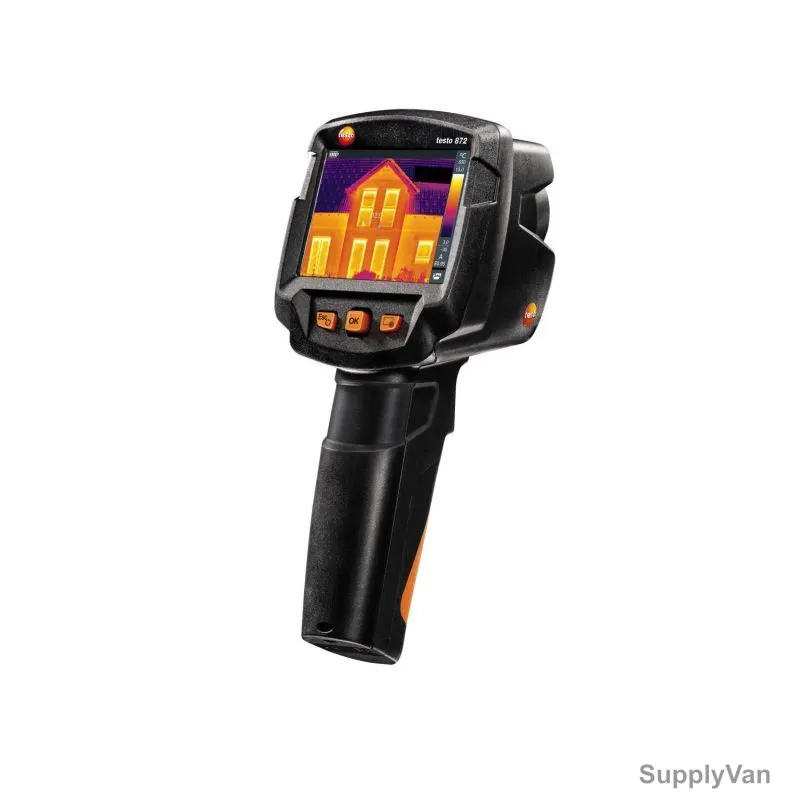

Testo Thermal Imager With App, 872, 0.01 to 1, 3.5 Inch TFT LCD
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Specifications
| SV Code | 481722622275 |
| Brand | Testo |
| Category | Thermal Imager |
| Unit | Piece |
| Color | Black |
| Material | ABS |
| Special Features | Displays IR Image and Real Image, Input of Solar Radiation Value |
| Ingress Protection | IP54 |
| Display Type | 8.9 cm (3.5 inch) TFT, QVGA (320 x 240 pixels) |
| Battery Type | Li-ion |
| Temp Range | -30 to 100 Deg.C/0 to 650 Deg.C |
| Storage Temp | -30 Deg.C to 60 Deg.C |
| Resolution | 640 x 480 pixels |
| Operating Temp | -15 Deg.C to 50 Deg.C |
| Display Resolution | 320 x 240 Pixel |
| Battery Life | 4 hrs |
| Spectral Response | 7.5-14 micron |
| Humidity | 20 to 80% RH (Non Condensing) |
| Digital Zoom | 2x, 4x |
| Lens Type | 42 Degrees x 30 Degrees |
| Minimum Focus Distance | <0.5 m |
| Thermal Sensitivity | 60 mK |
| Field of View | 42 Degrees x 30 Degrees |
| Emissivity | 0.01 to 1 |
| Removable Memory Card | 2.8 GB (Internal) |
| Focus Method | Fixed Focus |
| Temperature Accuracy | +/-2 Deg.C, +/-2% of m.v. |
| Delivery | On our shelf and ready to go out today. |
Description
The testo 872 thermal imager guarantees wireless communication with mobile terminal devices via WLAN. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control. The testo 872 delivers even more informative thermal images in combination with the compatible 770-3 clamp meter and testo 605i thermohygrometer. Both are available separately, simply order them straight away along with your testo 872. The thermal imager wirelessly integrates the measurement results of these measuring instruments via Bluetooth. The additional output, current and voltage values of the testo 770-3 clamp meter enable better interpretation of measured temperatures. Measure the air temperature and humidity with the testo 605i humidity measuring instrument and easily detect locations at risk of developing mould using the special humidity palette in the thermal imager via the traffic light principle. Detect locations at risk of developing mould, pinpoint thermal bridges, discover structural defects or identify overheated connections. The testo 872 thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.
Features
- Highest image quality thanks to high resolution: 76,800 temperature measuring points for precise thermography. Infrared resolution of 320 x 240 pixels – extendible to 640 x 480 pixels via integrated SuperResolution Technology
- Detecting temperature differences from as little as 0.06°C
- Testo Thermography App to use mobile terminal devices as a second display and for remote control or to write and send reports, along with saving them online
- Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the compatible testo 770-3 clamp meter and testo 605i thermohygrometer
- Built-in digital camera and laser marker generate a real image in parallel to the thermal image
- Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
- The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
- The testo ?-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
- The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
- Pro software for image evaluation on the PC
- You can choose to save thermal images as JPEGs
- Communication with the testo Thermography App wireless module BT/WLAN (EU, EFTA, USA, AUS, CDN, TR)
- Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional); Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey
- .bmt; .jpg; export option in .bmp; .jpg; .png; .csv; .xls
