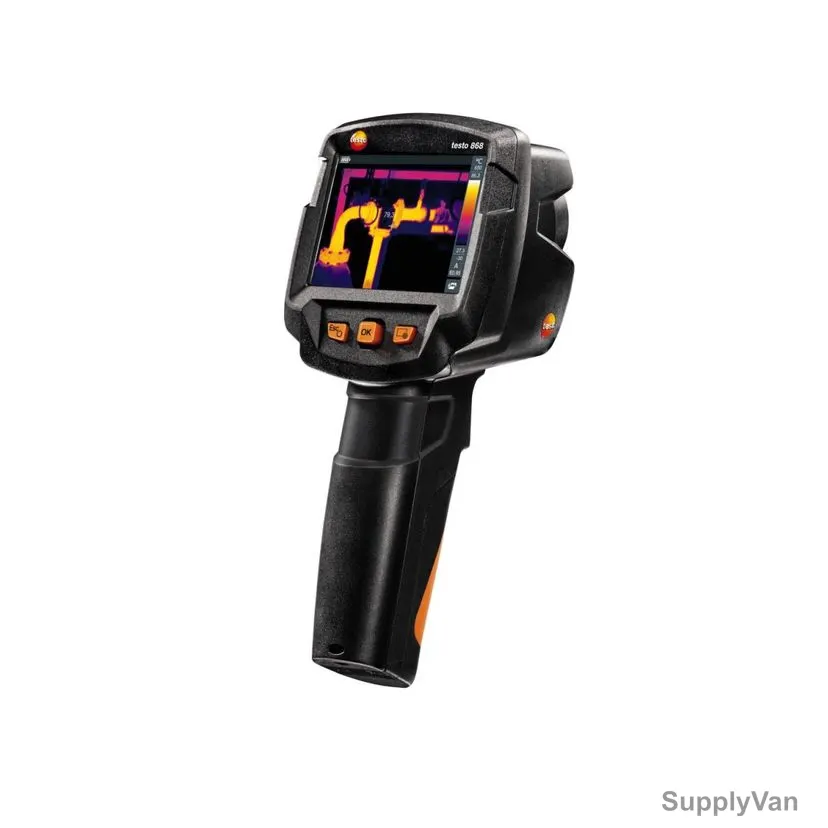

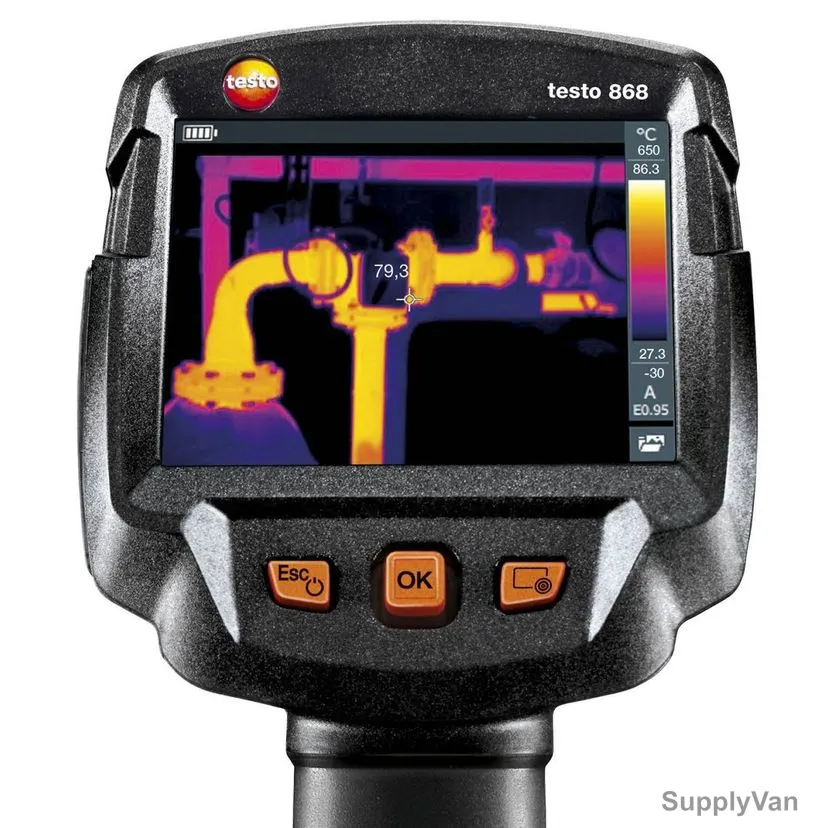

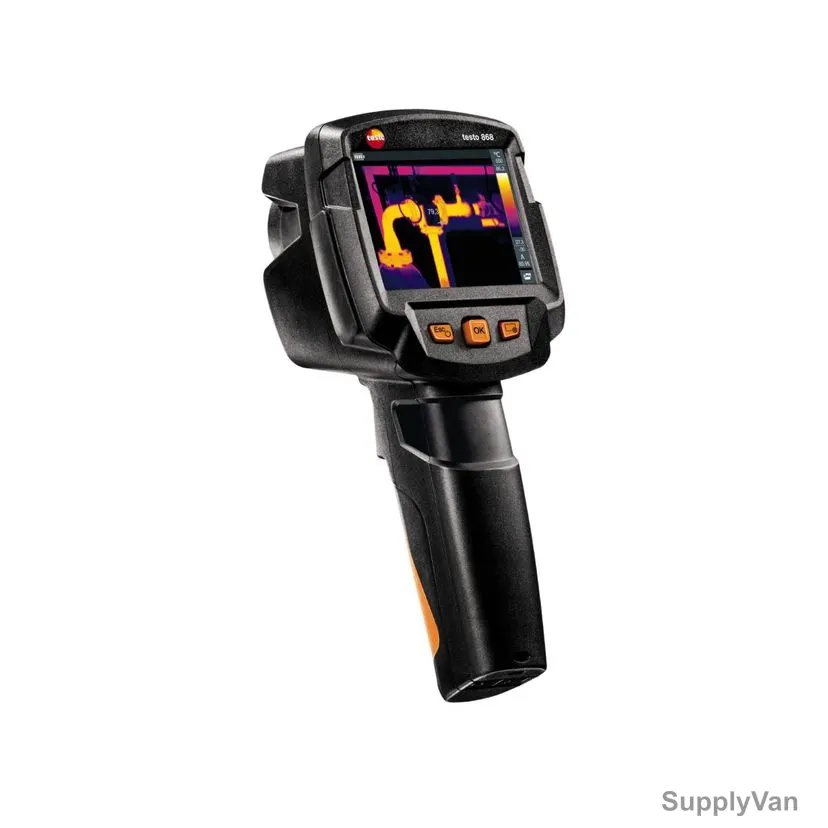

Testo Thermal Imager, 868-1, 320 x 240 pixels, -30 to +650 Deg.C

Name: Testo Thermal Imager, 868-1, 320 x 240 pixels, -30 to +650 Deg.C
Brand: Testo
SKU: testo-0560-8681
Price: 6956.95 AED
Availability: InStock

SV Code: 692323245954

AED 6,115.00AED 6,956.95-12%/ Piece

Price includes VATMore Details

In stock — ships today

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	692323245954
Brand	Testo
Category	Thermal Imager
Unit	Piece
Brand Origin (not manufacture)	Germany
Color	Black
Material	ABS and Polycarbonate
Ingress Protection	IP54
Display Type	TFT, QVGA
Battery Type	Lithium Ion
Measuring Range	-30 to +650 Deg.C
Accuracy	+/-2 Deg.C, +/-2% of mv
Charging Time	5-8 hrs
Display Resolution	320 x 240 pixels
Battery Life	4 hrs
Humidity	20 to 80% RH non-condensing
Lens Type	31 x 23 degree
Minimum Focus Distance	<0.5 Mtr
Thermal Sensitivity	100 mK
Field of View	31 x 23 degree
Emissivity	0.01 to 1
Spectral Range	7.5-14 micron
Image File Format	.bmt, export option in .bmp, .png, .csv, .xls, .jpg
Display Size	8.9 cm
Interface Type	USB 2.0 Micro B
Memory Capacity	2.8 GB
Operating Temperature	-15 to +50 Deg.C
Storage Temperature	-30 to +60 Deg.C
System Requirements	Windows 10, Windows 8, Windows 7
Refresh Rate	9 Hz
Display Color	4 (iron, rainbow, cold-hot, grey)
Delivery	On our shelf and ready to go out today.

Description

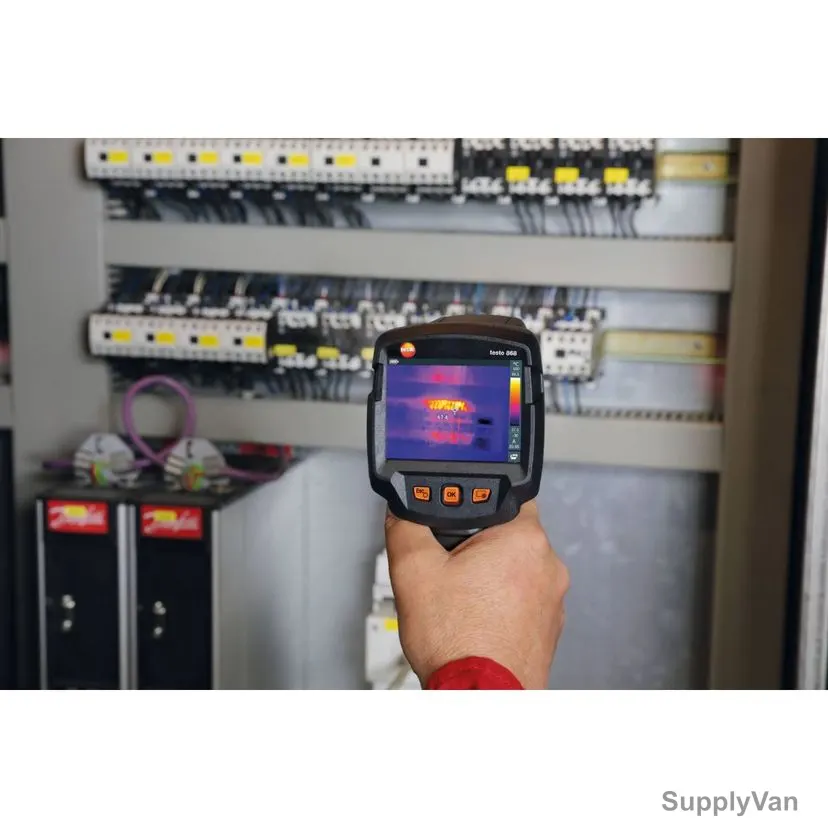

With the Testo 868 thermal imager, we have developed a thermal imager which makes work quicker and easier without foregoing professional thermal imaging technology. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, Testo Assist and Testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity and reflected temperature for building thermography, but also of colour scale. The Testo 868 thermal imager guarantees wireless communication with your mobile terminal device via WLAN. With the Testo Thermography App for iOS and Android you can write and send reports directly on site, as well as saving them online, and you can use your smartphone or tablet as a second display or for remote control. Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The Testo 868 thermal imager was developed for applications in daily maintenance and installation work in trade and industry. It enables quick and reliable work when you are detecting defects and carrying out maintenance.

Features

Very good image quality due to high resolution: 19,200 temperature measuring points for precise thermography. Infrared resolution of 160 x 120 pixels extended to 320 x 240 pixels via integrated SuperResolution Technology
Visualizing temperature differences of 0.10 Deg.C
The Testo Thermography App enables you to write reports on site, save them online and send them by e-mail, as well as allowing you to use mobile terminal devices as a second display or for remote control
Built-in digital camera generates a real image in parallel to the thermal image
Automatic hot-cold spot recognition directly displays critical temperature conditions
The Testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
The Testo ?-Assist ensures the correct measurement result by automatically determining and setting the emissivity and reflected temperature
The IFOV warner means the distance from the measurement object/measurement spot size is determined and the measurement spot is shown on the thermal image
Pro software for image evaluation on the PC
You can choose to save thermal images as JPEGs
EU-/EG-guidelines: EMC 2014/30/EU and RED 2014/53/EU
Infrared Resolution: 160 x 120 pixels
Geometric Resolution (IFOV): 3.4 mrad
SuperResolution (Pixel): 320 x 240 pixels
SuperResolution (IFOV): 2.1 mrad
