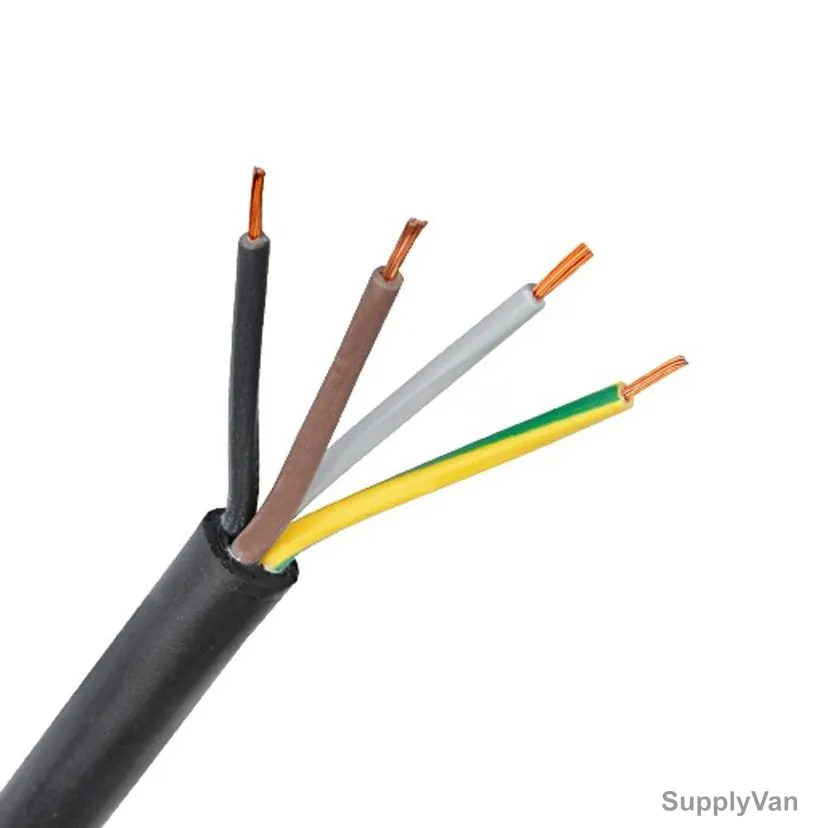

Top Cable Flexible Rubber Cable, H07RN-F, Xtrem, 4G Conductor, 4 Sq.mm x 100 Mtrs
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
This model family (5 options)
| Product | Price | Availability |
|---|---|---|
| Top Cable Flexible Rubber Cable, H07RN-F, Xtrem, 3 Core, 1.5 SQ.MM, 100 Mtrs Length | AED 385.00 | Quote |
| Top Cable Flexible Rubber Cable, H07RN-F, Xtrem, 3G Conductor, 4 Sq.mm x 100 Mtrs | AED 700.00 | Quote |
| Top Cable Flexible Rubber Cable, H07RN-F, Xtrem, 4G Conductor, 4 Sq.mm x 100 Mtrs viewing | AED 935.00 | Quote |
| Top Cable Flexible Rubber Cable, H07RN-F, 5G Conductor, 4MM x 100 Mtrs | AED 1,160.00 | Quote |
| Top Cable Flexible Rubber Cable, H07RN-F, Xtrem, 5 Core, 6 SQ.MM, 100 Mtrs Length | AED 1,925.00 | Quote |
Specifications
| SV Code | 771635735635 |
| Brand | Top Cable |
| Category | Submersible Pump Wires |
| Unit | Piece |
| Color | Black |
| Standards | EN 50525-2-21, IEC 60245 |
| Application | Industrial use, Mobile use, Robotics, Windmills, Temporary site installations |
| Cable Length | 100 Mtr |
| Insulation Voltage | 450/750V |
| Cross Section | 4 Sq.mm |
| Class Rating | Class 5 |
| Conductor Size | 4G |
| Insulation Material | Rubber |
| Service Temp | -40 to 90 Deg.C |
| Insulation Color Filterable | Brown + Black + Grey + Yellow/Green |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
Xtrem H07RN-F rubber cables are designed to supply power to low voltage appliances including electric motors and submersible pumps in deep water installations, as well as many other electrical equipment. Thanks to its extraordinary flexibility and mechanical strength, the Xtrem H07RN-F cable is ideal for power transmission in both fixed installation or mobile service. The nominal voltage up to 1000 V thanks to the high dielectric properties of the insulation material (according to HD 516). Top Cable Xtrem H07RN-F cables are designed to power all types of electrical equipment including motors and submersible pumps in deep water installations (AD8).
Construction Conductor:
Insulation:
Outer Sheath:
Standards / Compliance
Fire Performance:
Features
- Maximum short-circuit temperature: 250Deg.C (max. 5 s).
- Chemical and Oil resistance
- Grease and mineral oils resistance
- AD8 Submersion
- Cable for submersible pumps in drinkable water according to AS/ NZS 4020.
