Spraytech CAEA Series Flat External Air Atomizing Spray Nozzles

Description

2. Siphon Principle
Siphon principle is utilized to lift liquid from a certain height from the spray nozzle, suitable where a pump or pressurized container of liquid is not available. 3. Gravity Head Principle
Gravitational head of liquid is utilized to feed liquid to the spray nozzle, suitable where a pump or pressurized container of liquid is not available.
Choice of Spray Nozzles
Each spray set-up consists of an air cap and liquid cap which provide a specific spray pattern capacity and coverage performance.

Inside Body Mixing
Liquid and air streams meet within the nozzle and are mixed together and expelled through the same orifice. This internal mixing means the streams are not independent; a change in air flow will affect the liquid flow. This makes precise metering of the liquid more difficult than with an External Mix Set-up. Internal Mix set-up is able to produce the finest atomization of any of the XA set-ups, but they are generally not suitable for use with liquids which have a viscosity that is above 200 centipoise.
Outside Body Mixing
The air and liquid streams exit the nozzle independently and are combined and mixed outside of the nozzles. Because there is no connection between the air and liquid lines within the nozzles, the air and liquid flow rates can be controlled independently, allowing precise metering of the liquid. The atomization can be controlled by adjusting the air flow rate; more air produces finer atomization. In most cases, these set-ups do not atomize as finely as Internal Mix Setups. External Mix Set-up may be used with liquid having a viscosity above 200 centipoise and for abrasive suspensions. Spraytech provides Engineering guidance for spraying high viscosity liquids.

DESIGN / SPRAY CHARACTERISTICS

• External mix: allows spraying of viscous materials
• Variable atomization
• Moderate spray angle (range 60°- 90°)
• Precise metering of the liquid flow rate

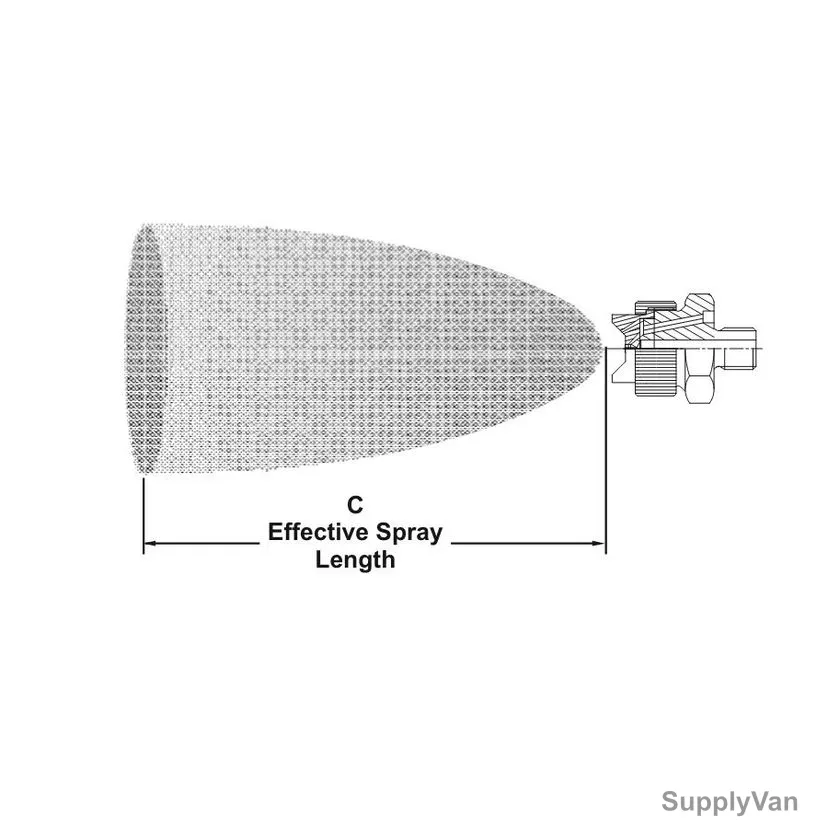

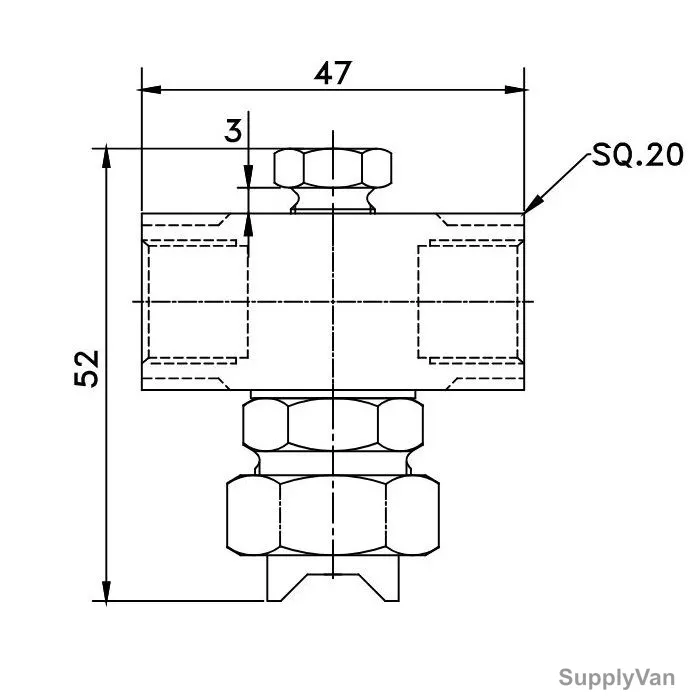

Flow Rates and Dimensions
Siphon-fed, External Mix, Flat Spray Pattern, 1/8" and 1/4" Pipe Sizes, BSP or NPT

Orifice size & water flow	Water Pressure [kg/cm2]
	Pressure 0.2 Bar	Pressure 0.4 Bar	Pressure 0.6 Bar	Pressure 0.8 Bar	Pressure 1 Bar	Pressure 1.2 Bar	Pressure 1.4 Bar	Pressure 1.6 Bar	Pressure 1.8 Bar	Pressure 2 Bar
0.5	ML/MIN	80	100	130	150	170	190	200	210	210	210
LPH	4.8	6	7.8	9	10.2	11.4	12	12.6	12.6	12.6
0.6	ML/MIN	160	200	240	260	300	320	340	360	380	400
LPH	9.6	12	14.4	15.6	18	19.2	20.4	21.6	22.8	24
0.7	ML/MIN	170	220	250	300	320	340	360	400	420	440
LPH	10.2	13.2	15	18	19.2	20.4	21.6	24	25.2	26.4
0.8	ML/MIN	260	300	360	400	440	480	510	540	580	610
LPH	15.6	18	21.6	24	26.4	28.8	30.6	32.4	34.8	36.6
0.9	ML/MIN	280	320	380	420	470	500	540	580	600	640
LPH	16.8	19.2	22.8	25.2	28.2	30	32.4	34.8	36	38.4
1	ML/MIN	340	420	500	560	620	680	720	740	760	780
LPH	20.4	25.2	30	33.6	37.2	40.8	43.2	44.4	45.6	46.8
1.1	ML/MIN
LPH
1.2	ML/MIN	440	540	640	760	840	900	990	1040	1080	1100
LPH	26.4	32.4	38.4	45.6	50.4	54	59.4	62.4	64.8	66
1.3	ML/MIN	740	760	880	1000	1100	1200	1300	1380	1200	1260
LPH	44.4	45.6	52.8	60	66	72	78	82.8	72	75.6
1.4	ML/MIN	760	880	940	1100	1200	1300	1400	1500	1560	1600
LPH	45.6	52.89	56.4	66	72	78	84	90	93.6	96
1.5	ML/MIN	800	1000	1200	1300	1440	1580	1660	1800	1900	1980
LPH	48	60	72	78	86.4	94.8	99.6	108	114	118.8

Pipe Size	Model No.	0.7 Bar Liquid	1.5 Bar Liquid	2.0 Bar Liquid	3.0 Bar Liquid	4.0 Bar Liquid	Spray Dimensions
		Air (bar)	l/h	Nm3/h	Air (bar)	l/h	Nm3/h	Air (bar)	l/h	Nm3/h	Air (bar)	l/h	Nm3/h	Air (bar)	l/h	Nm3/h	"C" Effective Spray Length (mm)	Max. Spray Length (m)
1/8 or 1/4	CAEA 350	0.6 0.7 1.1 1.4	13	5.46 6.12 7.80 9.36	0.7 1.1 1.8 2.1	16	6.12 7.80 11.0 12.6	1.4 2.1 2.5 2.8	25	9.36 12.6 14.1 15.6	2.1 2.8 3.5 4.2	37	12.6 15.6 18.6 21.6	3.2 4.2 5.3 5.6	52	17.1 21.6 25.8 27.3	480 560 580 660 640 690	3.8 4.3 4.0 4.6 5.2 4.6
1/8 or 1/4	CAEA 400	0.7 1.0 1.4 1.8 2.1 2.8 3.5	13	5.10 6.12 6.96 8.34 9.36 11.7 13.6	1.0 1.4 1.8 2.1 2.8 3.5 4.2	16	6.12 6.96 8.34 9.36 11.7 13.6 16.0	1.4 1.8 2.1 2.5 2.8 3.5 4.2	25	6.96 8.34 9.36 10.7 11.7 13.6 16.0	2.5 2.8 3.5 4.2 4.9 5.6 6.3	37	10.7 11.7 13.6 16.0 18.7 21.6 24.7	3.2 3.5 3.9 4.2 4.9 5.6 6.3	52	12.7 13.9 15.3 16.5 18.8 21.6 24.7	250 250 280 280 360 370 320	1.7 2.7 3.0 3.5 3.7 4.3 4.9
1/8 or 1/4	CAEA 450	0.6 1.1 1.4 1.8	18	5.46 7.80 9.36 11.0	0.7 1.4 1.8 2.1	22	6.12 9.36 11.0 12.6	1.1 1.8 2.5 2.8	33	7.80 11.0 14.1 15.6	2.5 3.2 3.9 4.2	48	14.1 17.1 19.8 21.6	3.5 4.6 6.0 6.7	68	18.6 22.6 28.5 31.5	510 640 640 610 580 610 600	3.5 3.0 3.8 4.3 4.9 5.2 4.0
1/8 or 1/4	CAEA 500	0.7 1.0 1.4 1.8 2.1 2.8 3.5	18	5.10 6.12 6.96 8.34 9.36 11.7 13.6	1.4 1.8 2.1 2.5 2.8 3.5 4.2	22	6.96 8.34 9.36 10.7 11.7 13.6 16.0	1.8 2.1 2.5 2.8 3.5 4.2 4.9	33	8.34 9.36 10.7 11.7 13.6 16.0 18.7	2.8 3.2 3.5 4.2 4.9 5.6 6.3	48	11.7 12.7 13.6 16.0 18.7 21.6 24.7	3.5 4.2 4.9 5.3 5.6 6.3 6.6	68	13.9 16.5 18.8 20.4 21.6 24.7 25.7	270 270 330 360 370 370 360	2.1 3.0 3.4 3.8 4.0 4.9 5.8
1/8 or 1/4	CAEA 550	0.7 1.1 1.4 1.8	36	6.12 7.80 9.36 11.0	1.1 1.4 2.1 2.5	45	7.8 9.36 12.6 14.1	1.8 2.1 2.8 3.2	68	11 12.6 15.6 17.1	3.2 3.5 4.9 5.9	100	17.1 18.6 24.3 27.3	5.3 6.0 6.7 7.0	141	25.8 28.5 31.5 33.0	760 810 790 760 660 840 790	3.0 4.0 4.3 4.9 5.8 4.3 5.8
1/8 or 1/4	CAEA 600	1.0 1.4 1.8 2.1 2.5 2.8 3.5	36	6.12 6.96 8.34 9.36 10.7 11.7 13.6	1.8 2.1 2.5 2.8 3.2 3.5 4.2	45	8.34 9.36 10.7 11.7 12.7 13.6 16.0	2.5 2.8 3.2 3.5 4.2 4.9 5.6	68	10.7 11.7 12.7 13.6 16.0 18.7 21.6	3.2 3.5 3.9 4.2 4.9 5.6 6.3	100	12.7 13.6 14.8 16.0 18.7 21.6 24.7	3.9 4.2 4.6 4.9 5.6 6.3 7.0	141	15.3 16.5 17.8 18.8 21.6 24.7 27.2	250 290 360 390 380 390 380	2.7 3.0 3.5 3.7 4.0 4.3 5.9
1/8 or 1/4	CAEA 650	1.8 2.1 2.5 2.8 3.2 3.5 4.2	36	14.1 15.6 18.0 19.8 21.3 22.8 26.7	1.8 2.1 2.5 2.8 3.2 3.5 4.2	45	14.1 15.6 18.0 19.8 21.3 22.8 26.7	2.5 2.8 3.2 3.5 3.9 4.2 4.9	68	18.0 19.8 21.3 22.8 24.6 26.7 31.2	3.9 4.2 4.6 4.9 5.3 5.6 6.3	100	24.6 26.7 28.8 31.2 33.9 36.0 41.1				290 300 300 320 340 330 340	3.0 3.4 4.0 4.3 4.6 4.7 5.5
1/8 or 1/4	CAEA 700	2.1 2.5 2.8 3.2 3.5 4.2 4.9	64	15.6 18.0 19.8 21.3 22.8 26.7 31.2	2.8 3.2 3.5 3.9 4.2 4.9 5.6	78	19.8 21.3 22.8 24.8 26.7 31.2 36.0	3.9 4.2 4.6 4.9 5.3 5.6 6.3	119	24.6 26.7 28.8 31.2 33.9 36.0 41.1	4.9 5.3 5.6 6.0 6.3	175	31.2 33.9 36.0 38.4 41.1				340 360 360 360 380 380	3.5 4.3 4.9 5.5 5.5 5.8 6.1
1/8 or 1/4	CAEA 750	2.8 3.2 3.5 3.9 4.2 4.6 4.9	102	19.8 21.3 22.8 24.6 26.7 28.8 31.2	3.5 3.8 4.2 4.6 4.9 5.3 5.6	125	22.8 24.6 26.7 28.8 31.2 33.9 69.0	4.6 4.9 5.3 5.6 6.0 6.3	192	28.8 31.2 33.9 36.0 38.4 41.1	5.6 6.0 6.3	280	34.0 38.4 41.1				360 370 370 380 410 410 410	4.6 4.9 5.2 5.5 5.5 5.8 6.1
