Mitutoyo Outside Micrometer W/ Interchangeable Anvils, 104-136A, Range 150-300MM

Name: Mitutoyo Outside Micrometer W/ Interchangeable Anvils, 104-136A, Range 150-300MM
Brand: Mitutoyo
SKU: mitutoyo-104-136a
Price: 1522.50 AED
Availability: InStock

SV Code: 134266294154

AED 2,475.00/ Piece

Price includes VATMore Details

In stock — ships today

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	134266294154
Brand	Mitutoyo
Category	Micrometers
Unit	Piece
Measuring Range	150-300 mm
Measuring Graduation	0.01 mm
Accuracy	±(4+L/75) µm
Delivery	On our shelf and ready to go out today.

Description

This analog outside micrometer offers you an extra wide measuring range and presents you with Easy, interchangeable anvils allow a wide range of measurements. Ratchet stop delivers a constant measuring force.

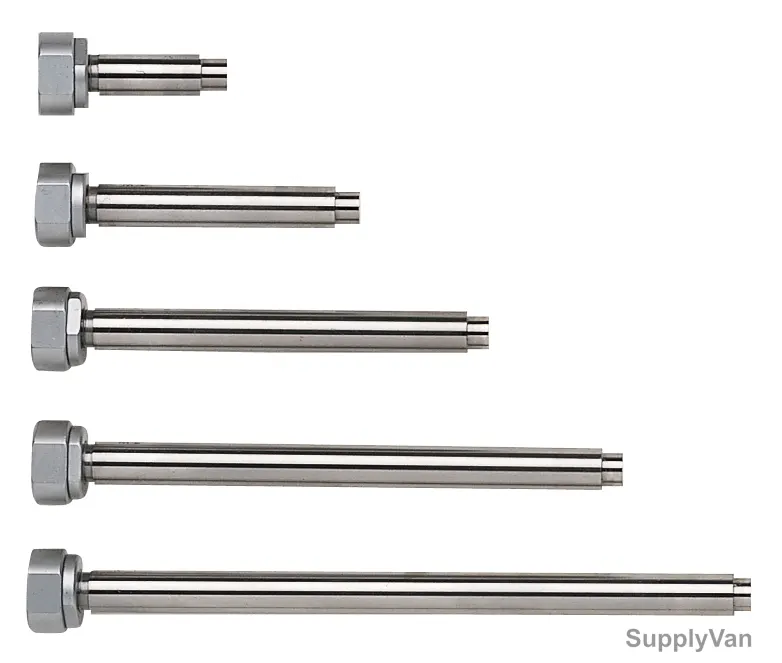

6 Interchangeable anvils
Measuring surfaces - Hardened, lapped (anvil), carbide tipped, lapped (spindle side)
Measuring spindle with spindle lock, ø 6,35 mm (up to 300 mm) ø8 mm (over 300 mm), spindle pitch 0.5 mm
Thimble and sleeve satin chrome finish ø 18 mm scale
Flatness: 0.6 µm, Parallelism: (2+L/100) μm, Measuring Force: 5-10 N

Features

6 Interchangeable anvils
Measuring surfaces - Hardened, lapped (anvil), carbide tipped, lapped (spindle side)
Measuring spindle with spindle lock, ø 6,35 mm (up to 300 mm) ø8 mm (over 300 mm), spindle pitch 0.5 mm
Thimble and sleeve satin chrome finish ø 18 mm scale
Flatness: 0.6 µm, Parallelism: (2+L/100) μm, Measuring Force: 5-10 N
6 Setting standard
