Maxima Electrode Solar Charge Controller, MSCC4040D, 12-48VDC, 40A
SV Code: 391145523738
Model No.: MSCC4040D
AED 195.00/ Piece
Price includes VATMore Details
Available in 7 working days
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Fast UAE delivery
Genuine & warranty
Bulk quotes
Specifications
| SV Code | 391145523738 |
| Brand | Maxima |
| Category | Solar Charge Controller |
| Unit | Piece |
| Country of Manufacture | China |
| Dimension (L x B x H) | 19.6L x 11.1B x 5.4H cm |
| Ingress Protection | IP30 |
| Input Power | 520/1560/1040/2080W |
| Battery Type | Lead-Acid Battery, GEL, Lead-Acid Flooded Battery |
| Mounting Hole Size | 184 x 80 mm |
| Battery Voltage | 9-64 V |
| Humidity | <=90% |
| Functions | Remote Communication, TTL, Standard Modbus Protocol |
| Charging Current | 40 A |
| Wire Size | 12AWG (16 sq. mm) |
| Operating Temperature | -20 to +55 deg.C |
| Storage Temperature | -30 to +80 deg.C |
| Charge Time | 2 hrs |
| Charging Voltage Filter | 12/24/36/48VDC |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The product is based on Pulse Width Modulation (PWM) charging mode with all-digital technology, LCD Screen and double USB ports design. Its fully automatic operation mode can be used in a wide range of applications. For example: Home power system, Traffic lights, Solar street lights, Garden lights system, etc.
Features
- To ensure the product life, international renowned brands (ST) component is used, high quality and low failure rates
- With UL, VDE certificated terminals, the product is more secure and more reliable.

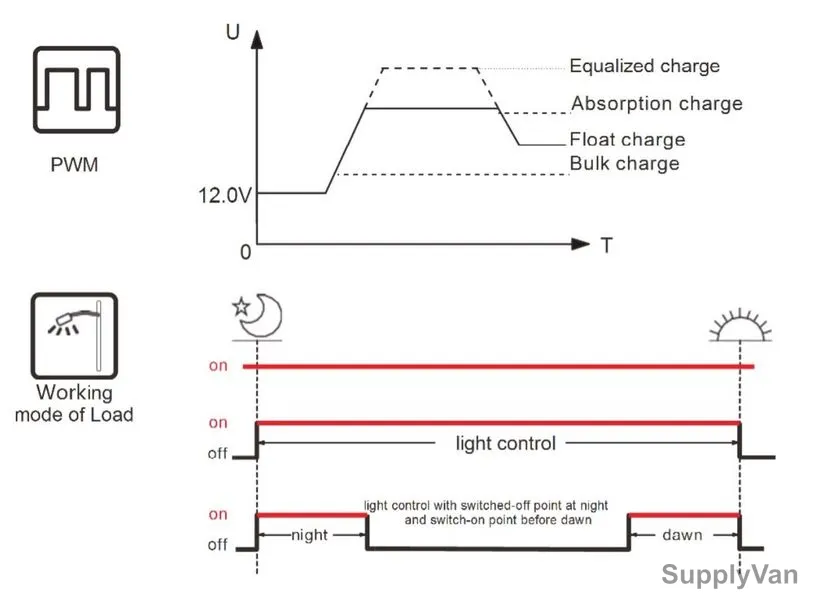

- 4-stage PWM charging mode: bulk, absorption, equalization, float.

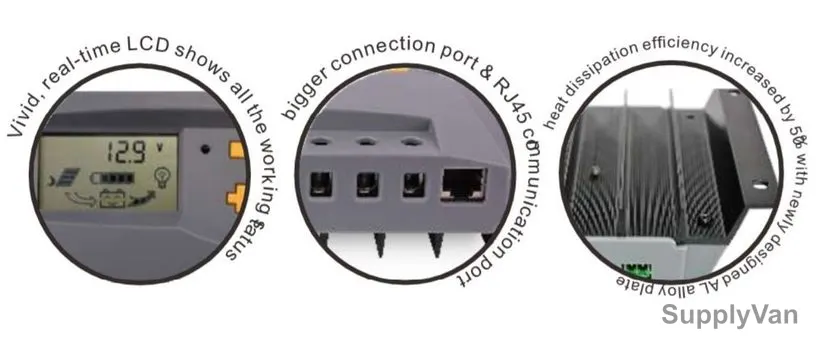

- LCD display operating data and working status dynamically
- Operation is more comfortable and convenient with user-friendly button settings.
- Various load control modes: Manual mode, light control mode, light and time control mode and double time periods mode
- Battery voltage level detection is adjustable, Charging and discharging parameters are adjustable
- Solar panels and battery anti-reverse protection function, For battery, under-voltage protection, over-voltage protection, under-voltage recovery, over-voltage recovery
- Over-load protection, Internal over-heat protection function, Real-time power statistics function, Battery temperature compensation function, Time display function, Communication function, Full electronic protection function
- Static loss: <=9.2mA/12V,<=11.7mA/24V, <=14.5mA/36V, <=17mA/48V
- HVD: 16V
- Max Open Voltage of Solar Panel: 100V
- Light Control Voltage: 5V
- Temperature Compensation: -4mV/2V(25de.C)
- Aperture for Installation: Dia 5mm
