781891684724 · Fluke

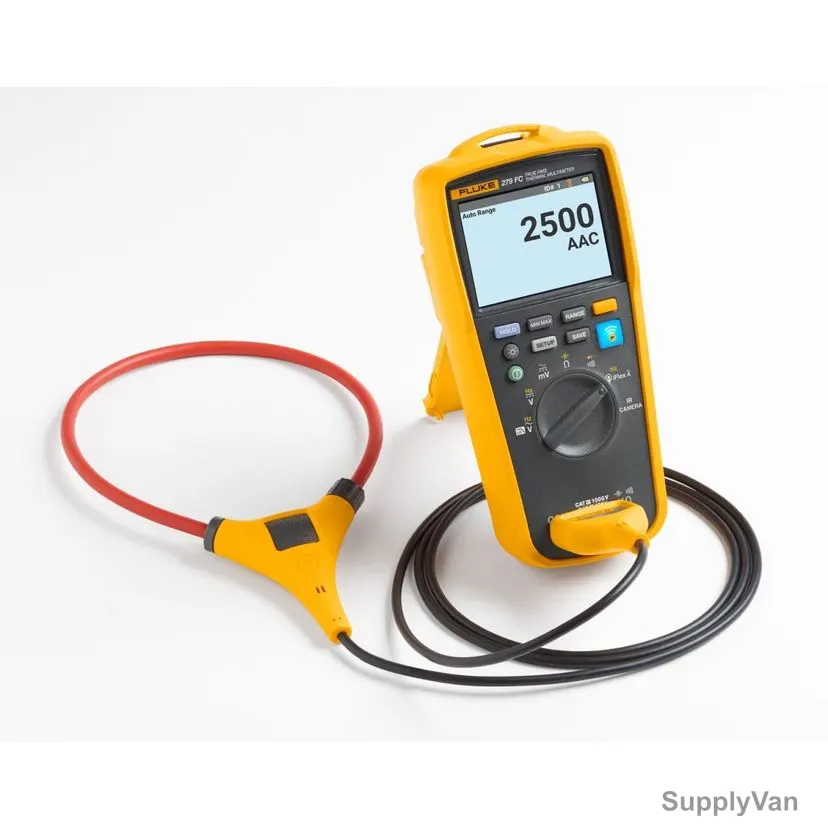

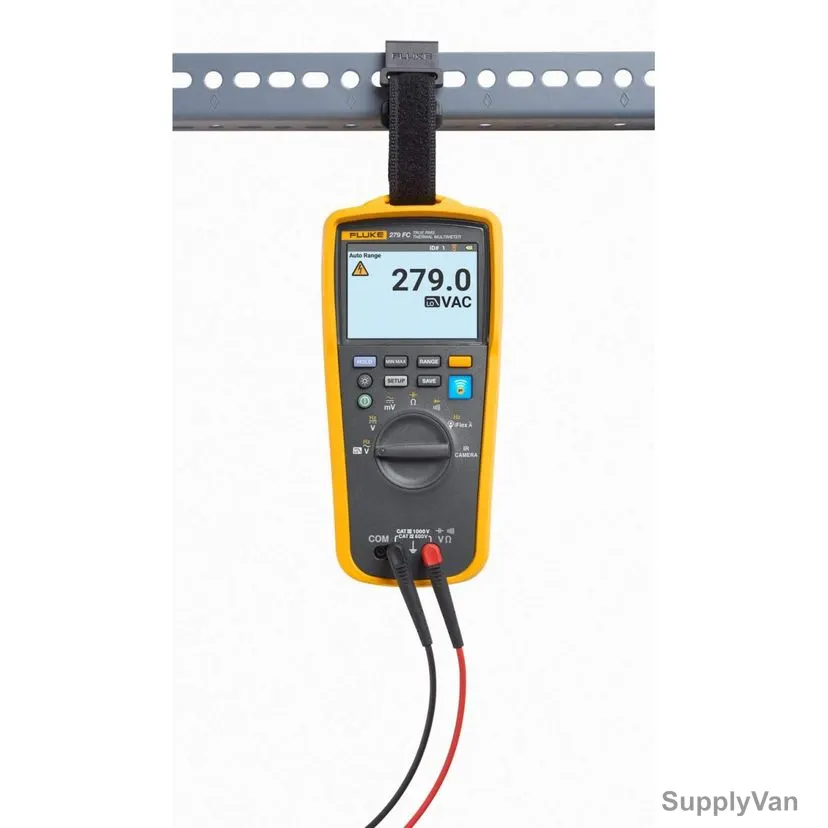

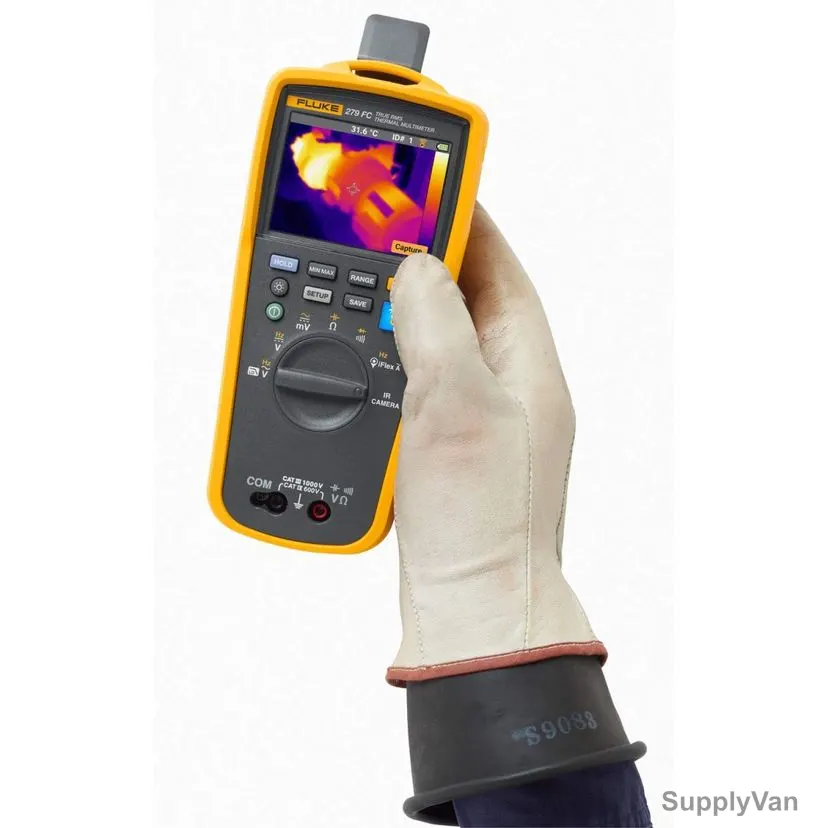

Fluke Wireless TRMS Thermal Multimeter With iFlex, 279FC-iFlex, 1000V

Name: Fluke Wireless TRMS Thermal Multimeter With iFlex, 279FC-iFlex, 1000V
Brand: Fluke
SKU: fluke-279fc-iflex
Price: 3630.00 AED
Availability: InStock

SV Code: 781891684724

AED 5,924.00/ Piece

Price includes VATMore Details

In stock — ships today

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	781891684724
Brand	Fluke
Category	Digital Multimeters
Unit	Piece
Brand Origin (not manufacture)	United States
Color	Yellow and Black
Accuracy	+/-5 Deg.C or +/-5 %
Resolution	102 x 77
Thermal Sensitivity	<200 mK
Field of View	36 x 27 degree
Emissivity	0.95 fixed
Focus Spot Size To Distance Ratio	162:1
Detector Type	Uncooled vanadium oxide
Spectral Range	7.5-14 micron
Temperature Range	-10 to 200 Deg.C
Temperature Resolution	Yes, centerpoint
Delivery	On our shelf and ready to go out today.

Description

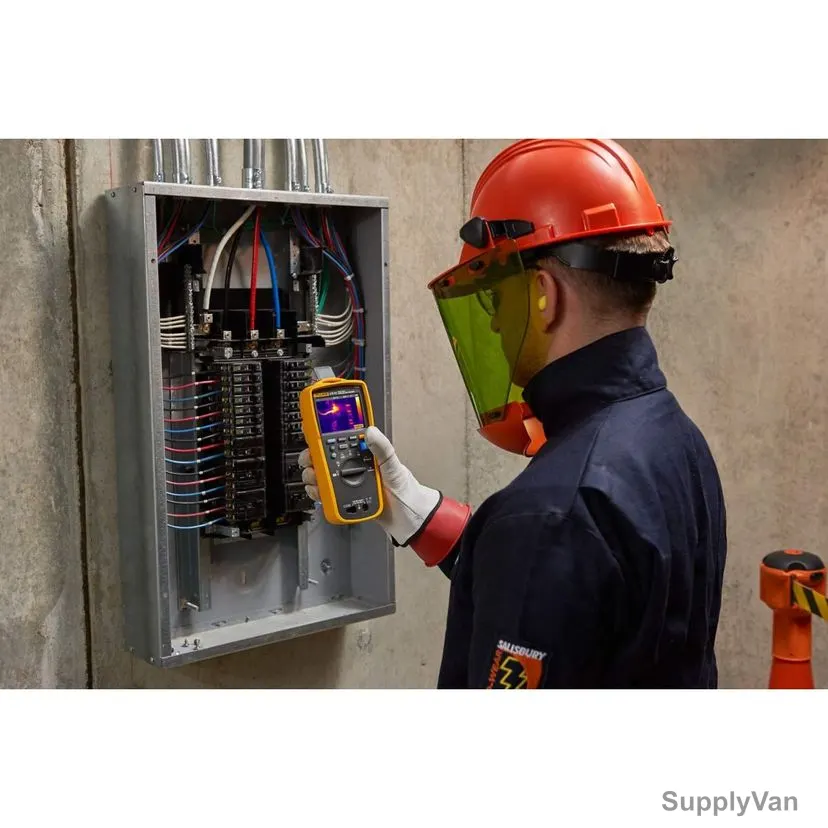

With the ability to scan, this thermal multimeter allows users to find electrical problems from a distance. This tool also verifies hot spots on high-voltage equipment and transformers and identifies heating of fuses, wires, insulators, connectors, splices, and switches. Additionally, it comes equipped with the iFlex probe. Scanning with this thermal multimeter allows users to locate electrical issues rapidly and from a safe distance. Additionally, it is an ideal troubleshooting tool for electrical equipment, due to it's the ability to verify hot spots on high-voltage equipment and transformers and detect heating of fuses, wires, insulators, connectors, splices, and switches. Compatible with iFlex (a flexible current clamp) to expand your measurement capabilities and get into tight, hard to reach spaces for current measurement (up to 2500 A AC). The large full-color LCD screen makes for easier and clearer viewing of images and readings. The 10 hour and more rechargeable battery keeps you going all day long under normal conditions.
Specifications

AC Voltage Range/Resolution: 600.0/0.1 mV, 6.000/0.001 V, 60.00/0.01 V, 600.0/0.1 V, 1000/1 V

AC Voltage Accuracy: 45 to 65 Hz: 1.0 % + 3, 65 to 200 Hz: 4.0% + 3, 200 to 500 Hz: 15% + 3

AC millivolts Range/Resolution: 600.0/0.1 mV

AC millivolts Accuracy: 45 to 500 Hz: 1.0% + 3

DC Voltage Range/Resolution: 6.000/0.001 V, 60.00/0.01 V, 600.0/0.1 V, 1000/1 V

DC Voltage Accuracy: 6, 60, 600V: 0.09% + 2, 1000V: 0.15% + 2

DC mV Range/Resolution: 600.0/0.1 mV

Continuity Range/Resolution: 600/1 Ohm

Continuity Accuracy: Meter beeps at <25 Ohm, beeper detects opens or shorts of 600 µs or longer

Resistance Range/Resolution: 600.0/0.1 Ohm, 6.000/0.001 kOhm, 60.00/0.01 kOhm, 600.0/0.1 kOhm, 6.000/0.001 MOhm, 50.00/0.01 MOhm

Resistance Accuracy: 600 Ohm: 0.5 % + 2, 6 to 600 kOhm: 0.5 % + 1, 50 MOhm: 1.5 % + 3

Diode Test Range/Resolution: 2.000/0.001 V

Diode Test Accuracy: 1% + 2

Capacitance Range/Resolution: 1000/1 nF, 10.00/0.01 µF, 100.0/0.1 µF, 9999/1 µF

Capacitance Accuracy: 1000 nF to 100 µF: 1.2% + 2, 9999 µF: 10% typical

AC Current Range/Resolution: 999.9/0.1 A, 2500/1 A (with iFlex)

AC Current Accuracy: 45 to 500 Hz: 3.0% + 5

Frequency Range/Resolution: 99.99/0.01 Hz, 999.9/0.1 Hz

Frequency Accuracy: 0.1% + 1

Input Characteristics

AC Voltage Input impedance (nominal): >10 MOhm <100 pF

AC Voltage Common mode rejection ratio (1 kOhm unbalance): >60 dB, DC to 60 Hz

AC Voltage Overload protection: 1100V rms

DC Voltage Input impedance (nominal): >10 MOhm <100 pF

DC Voltage Common mode rejection ratio (1 kOhm unbalance): >120 dB at DC, 50 Hz or 60 Hz

DC Voltage Normal mode rejection: >60 dB at 50 Hz or 60 Hz

DC Voltage Overload protection: 1100V rms

AC mV/DC mV Input impedance (nominal): >10 MOhm <100 pF

AC mV/DC mV Common mode rejection ratio (1 kOhm unbalance): >120 dB at DC, 50 Hz or 60 Hz

AC mV/DC mV Normal mode rejection: >60 dB at 50 Hz or 60 Hz

AC mV/DC mV Overload protection: 1100V rms

Resistance/Capacitance Open circuit test voltage: <2.7 VDC

Resistance/Capacitance Full scale voltage to 6 MOhm: <0.7 VDC

Resistance/Capacitance Full scale voltage 50 MOhm: <0.9 VDC

Resistance/Capacitance Typical short circuit current: <350 mA

Resistance/Capacitance Overload protection: 1100V rms

Continuity/Diode Test Open circuit test voltage: <2.7 VDC

Continuity/Diode Test Full scale voltage: 2.000VDC

Continuity/Diode Test Typical short circuit current: <1.1 mA

MIN/MAX Recording Accuracy

AC Functions: 40 counts for changes > 900 ms in duration

DC Functions: 12 counts for changes > 350 ms in duration

Image Palette: Ironbow

Level and Span: Auto

Image Capture: Image available for review before a save

Storage Medium: Internal memory stores up to 100 images

Image Transfer: Fluke Connect/SmartView

File Format: is2

Display Size: 3.5" (8.9 cm) diagonal

Features

Full-featured multimeter with built-in thermal imager
15 measurement functions including: AC voltage with low-pass filter, DC voltage, Resistance, Continuity, Capacitance, Diode test, Min/Max/Avg, AC current (with iFlex), Frequency
Thermal imaging reveals many electrical issues quickly and safely, eliminating the need for time-consuming testing and validation
Two-in-one tool is designed to increase productivity- no need to go back to the truck or office to retrieve a shared camera or wait for the thermographer do more in less time!
iFlex expands your measurement capabilities get into tight, hard to reach spaces for current measurement (up to 2500 A AC)
Designed for durability, built to withstand a 9.8 ft. (3 m) drop, double insulated with raised rubber holster for increased protection
Save measurements and images while communicating wirelessly with a smart phone up to 20 feet/6.1 m away (no obstructions)
Rechargeable lithium ion battery allows for a for a full work day (10+ hours) under normal conditions
Auto power off to save battery power
CAT III 1000V, CAT IV 600V measurement category
