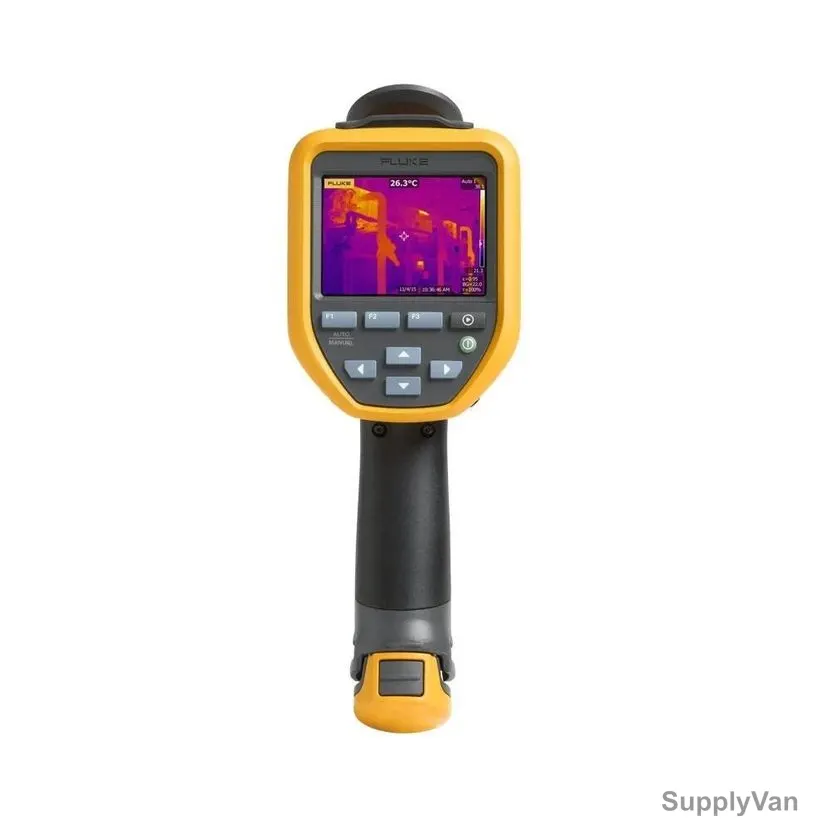

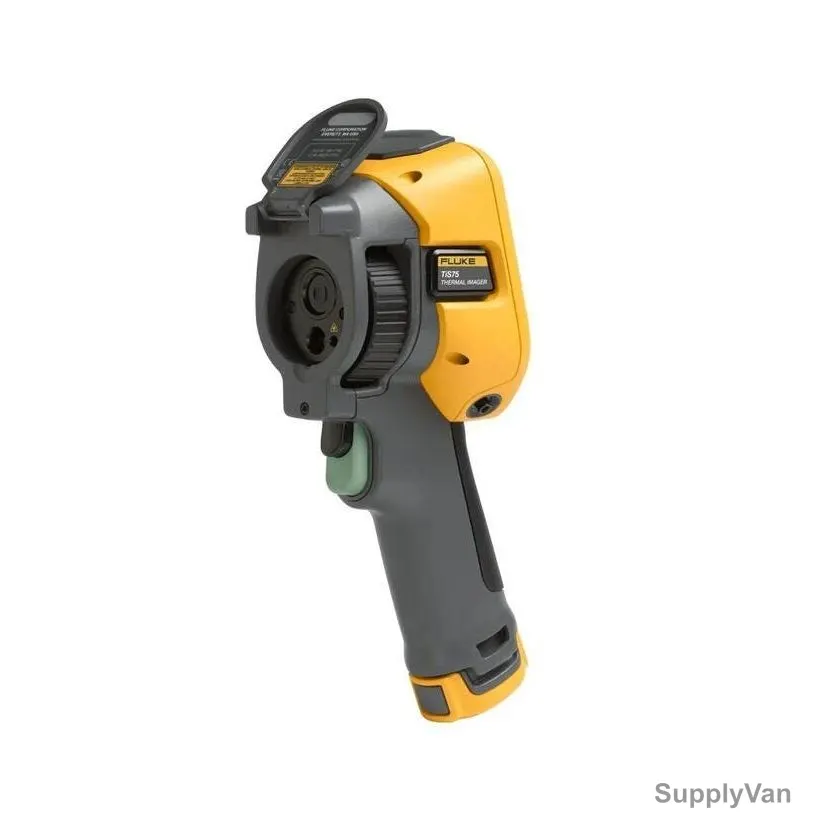

Fluke Infrared Camera, TIS75, 27Hz, 320 x 240P, IP54, -20 to +550 Deg.C
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Specifications
| SV Code | 249655747278 |
| Brand | Fluke |
| Category | Thermal Imager |
| Unit | Piece |
| Standards | EN 60529, EN 61010-1 |
| Ingress Protection | IP54 |
| Battery Type | Lithium-Ion |
| Accuracy | +/-2 Deg.C or +/-2% |
| Display Resolution | 320 x 240P |
| Frame Rate | 27 Hz |
| Thermal Sensitivity | 40 mK |
| Field of View | 42 x 30 Degree |
| Display Size | 3.5 Inch, 640 x 480 Touchscreen LCD |
| Temperature Range | -20 to +550 Deg.C |
| Operating Temperature | -10 to +50 Deg.C |
| Storage Temperature | -20 to +50 Deg.C |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

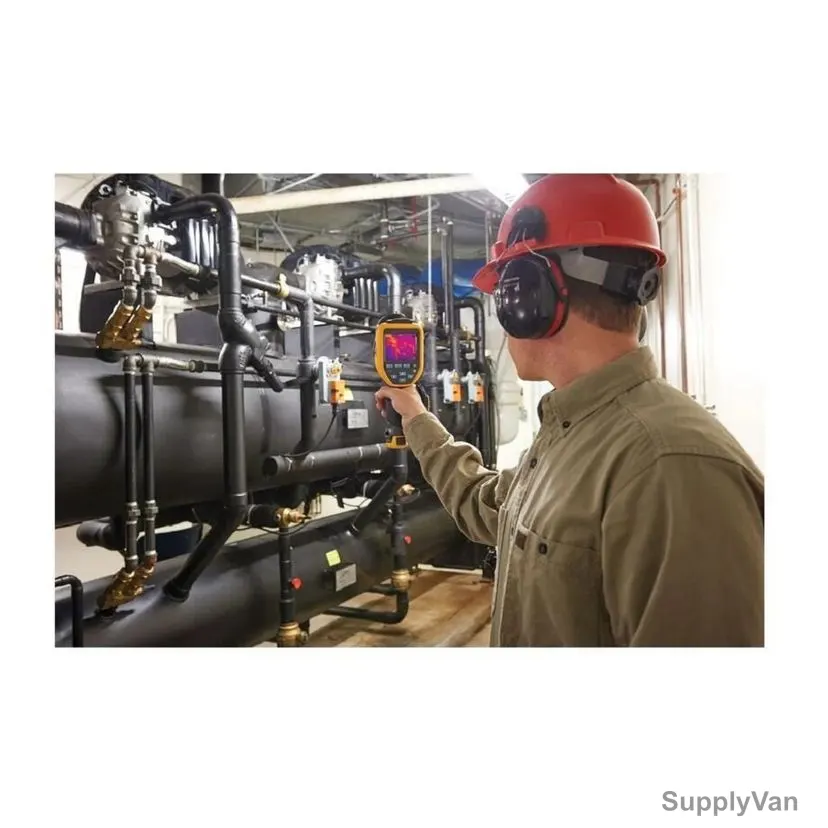

With professional grade 320x240 resolution, a distance to spot (D:S) ratio of 504:1, and precise manual focusing, the TiS75 enables maintenance professionals to pinpoint issues with equipment and electrical systems quickly and accurately. A long-travel focus wheel enables very fine manual focus adjustments to capture in-focus images with precise measurements. And it is as rugged and versatile as it is precise.
The TiS75 captures standard and radiometric video, offers IR-PhotoNotes™ or voice annotation, monitors high temperature processes up to +550 °C (1022 °F), and streams video to a PC or smartphone. It also offers IR-Fusion® AutoBlend™ and picture-in-picture (PIP) to blend a visible light image with an infrared image of the same target at five different levels to more easily locate problems. Plus, you can store thousands of images on the camera with 4 GB internal memory and 4 GB more on the included micro SD card.

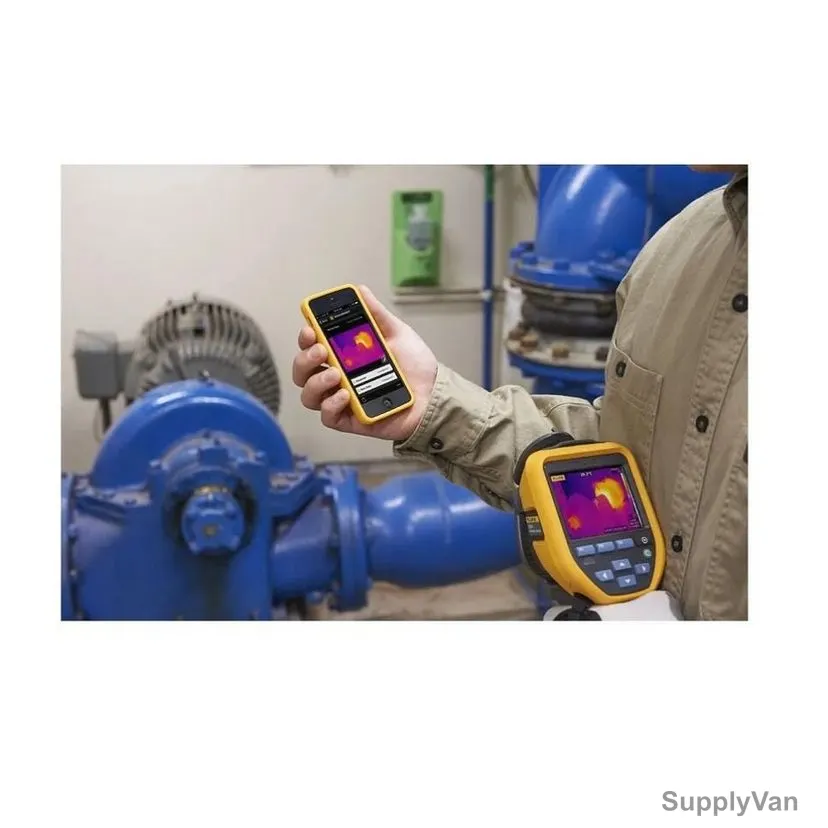

Collaborate from the field with Fluke Connect connectivityBecause the TiS75 is Fluke Connect-enabled, you can share images in real-time¹ across teams and save time by creating and emailing reports from the jobsite. Capture multiple measurements and save them to the cloud with WiFi upload and free storage for up to 5GB with Fluke Cloud.
See more and do more with Fluke Connect® SmartView® IR Analysis Reporting SoftwareUse Fluke Connect SmartView software to analyze images from the TiS75 with graphical tools to quantify the severity of problems. AWhen you're done analyzing you can easily generate a professional report complete with thermal images with the easy-to-follow report wizard to guide you step by step.
Features
- Manual focus infrared camera with professional grade 320x240 resolution (76,800 pixels)
- Captures optimal images from as close as 0.15m (6 in)
- Provides a D:S of 514:1
- Offers temperature measurement range from -20 °C to 550 °C (–4 °F to 1022 °F)
- Includes built-in laser pointer
- Displays images on a 3.5 inch, 320x240 LCD
- Offers five presets of IR-Fusion® with AutoBlend and PIP to help find problems fast
- Captures visible light images with built-in 5 megapixel industrial performance digital camera
- Includes a smart battery system that allows you to easily monitor your battery charge level with five-segment LED display
- Allows real-time communication by email from your smart phone with Fluke Connect
- Stores thousands of images—4 GB internal memory and included 4 GB micro SD card
