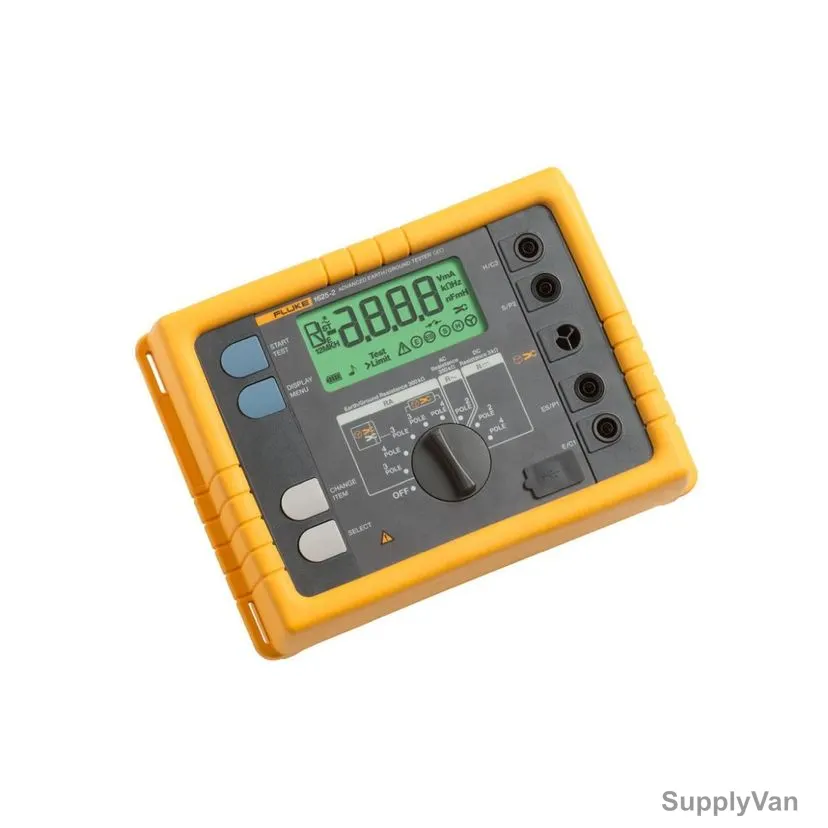

Fluke Advanced Geo Earth Ground Tester Kit, 1625-2, 50V, 0.02 to 300 kOhm
SV Code: 747658998451
AED 10,620.00/ Piece
Price includes VATMore Details
In stock — ships today
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Fast UAE delivery
Genuine & warranty
Bulk quotes
Specifications
| SV Code | 747658998451 |
| Brand | Fluke |
| Category | Earth Ground Resistance Testers |
| Unit | Piece |
| Brand Origin (not manufacture) | United States |
| Operating Temp | -10 to 50 Deg.C |
| Storage Temperature | -30 to 60 Deg.C |
| Delivery | On our shelf and ready to go out today. |
Description
General SpecificationsMemory: Internal memory storage up to 1500 records accessible via USB port Measuring function: Interference voltage and frequency, earthing resistance 3- and 4-pole with/without clip-on current transformer, resistance 2-pole with AC, 2- and 4-pole with DC Display: 4 digit (2999 Digit) - 7 segment liquid crystal display, with improved visibility Operation: Central rotary switch and function keys Temperature RangeTemperature coefficient: +/-0.1% of reading/Deg.C < 18Deg.C > 28Deg.C Type of protection: IP56 for case, IP40 for battery door according to EN60529 Max voltage: Warning – socket "clamp" to socket E, ES, S or H Safety: Protection by double and/or reinforced insulation. Max. 50 V to earth per IEC61010-1. Pollution degree 2 Quality standard: Developed, designed and manufactured to comply with DIN ISO 9001 External field influence: Complies with DIN 43780 (8/76) Auxiliary power: 6 x 1.5 V alkaline (IEC LR6 or type AA)/li> Battery life span: With IEC LR6/type AA: typ. 3,000 measurements (RE+RH ? 1 kOhm) With IEC LR6/type AA: typ. 6,000 measurements (RE + RH > 10 kOhm) Case material: Polyester Measurement of Interference Voltage DC + AC (UST) limits of error: method: Full wave rectification Measuring range: 1 V to 50 V Display range: 0.0 V to 50 V Resolution: 0.1V Frequency range: DC/AC 45 Hz to 400 Hz sine Accuracy: +/-(5% of rdg + 5 digit) Measuring sequence: Approx. 4 measurements/s Internal resistanc: Approx. 1.5 MOhm Max. overload: Urms = 250V Measurement of Interference Frequency (F)Measuring limits of error: method: Measurement of oscillation period of the interference voltage Measuring range: 6.0 Hz to 400 Hz Display range: 16.0 Hz to 299.9 Hz to 999 Hz Resolution: 0.1 Hz to 1 Hz Range: 1V to 50V Accuracy: +/-(1% of rdg + 2 digit) Earthing Resistance (RE)Measuring method: Current and voltage measurement with probe as IEC61557-5 Open circuit voltage: 20/48 V, AC Short circuit current: 250 mA AC Measuring frequency: 94, 105, 111, 128 Hz selected manually or automatic. (AFC) 55 Hz in function R Noise rejection: 120 dB (16 2/3 , 50 , 60, 400 Hz) Max. overload: Urms = 250 V Electrical Measurement SpecificationsMeasuring range: 0.020 Ohm to 300 kOhm Display range: 0.001 Ohm to 2.999 Ohm/3.00 Ohm to 29.99 Ohm/30.0 Ohm to 299.9 Ohm/0.300 kOhm to 2.999 kOhm/3.00 kOhm to 29.99 kOhm/30.0 kOhm to 299.9 kOhm Resolution: 0.001 Ohm/0.01 Ohm/0.1 Ohm/1 Ohm/10 Ohm/100 Ohm Accuracy: +/-(2% of rdg + 2 digit) Operating error: +/-(5% of rdg + 5 digit) Measuring time: Typical 8 seconds with a fixed frequency 30 sec. max. with AFC and complete cycle of all measuring frequencies Additional error because of probe-and auxiliary earth electrode resistance : RH(RS + 2000 Ohm)/RE x 1.25 x 10-6% + 5 digits Measuring error of RH and RS: Typ. 10% of RE + RS + RH Max. probe resistance: ? 1 MOhm Max. auxiliary earth electrode resistance: ? 1 MOhm Automatic Switchover of Measuring Resolution in Dependence to Auxiliary Earth Electrode Resistance RHRH with Umeas = 48 V: < 300 Ohm/< 6 Ohm/< 60 Ohm/< 600 Ohm RH with Umeas = 20 V: < 250 Ohm/< 2.5 kOhm/< 25 kOhm/< 250 kOhm Resolution: 1 mOhm/10 mOhm/100 mOhm/1 Ohm Selective Measurement of the Earthing Resistance (RE Clamp)Measuring method: Current and voltage measurement with probe as per EN61557-5 and current measurement in the individual branch with additional current transformer (patent applied for). Open circuit voltage: 20/48 V AC Short circuit current: 250 mA AC Measuring frequency: 94, 105, 111, 128 Hz selected manually or automatically (AFC), 55 Hz (R1) Noise rejection: 120 dB (162/3, 50, 60, 400 Hz) Max. overload: Max. Urms = 250 V (measurement will not be started) Measuring range: 0.020 Ohm to 300 kOhm Display range: 0.001 Ohm to 2.999 Ohm/3.00 Ohm to 29.99 Ohm/30.0 Ohm to 299.9 Ohm/0.300 kOhm to 2.999 kOhm/3.00 kOhm to 29.99 kOhm Resolution: 0.001 Ohm/0.01 Ohm/0.1 Ohm/1 Ohm/10 Ohm Accuracy: +/-(7% of rdg + 2 digit) Operating error: +/-(10% of rdg + 5 digit) Additional error because of probe- and auxiliary earth typ. electrode resistance: RH(RS + 2000 Ohm)/RETOTAL x 1.25 x 10-6% + 5 digits Measuring error of RH and RS: Typ. of 10% of RETOTAL + RS + RH Measuring time: Typ. 8 sec. with a fixed frequency 30 sec. max. with AFC and complete cycle of all measuring frequencies. Minimal current in single branch to be measured: 0.1 to 0.5mA With transformer Max. interference current through transformer: 3A Resistance Measurement (R~)Measuring method: Current and voltage measurement Measuring voltage: 20VAC, square pulse Short circuit current: > 250 mA AC Measuring frequency: 94, 105, 111, 128 Hz selected manually or automatically (AFC) Measuring range: 0.020 Ohm to 300 kOhm Display range: 0.001 Ohm to 2.999 Ohm/3.00 Ohm to 29.99 Ohm/30.0 Ohm to 299.9 Ohm/300 Ohm to 2999 Ohm/3.00 kOhm to 29.99 kOhm/30.0 kOhm to 299.9 kOhm Resolution: 0.001 Ohm/0.01 Ohm/0.1 Ohm/1 Ohm/10 Ohm/100 Ohm Accuracy: +/-(2% of rdg + 2 digit) Operating error: +/-(5% of rdg + 5 digit) Measuring time: Typical 6 seconds Max. interference voltage: 24 V, with higher voltages measurement will not be started Max overload: Urms max. = 250V Resistance Measurement (R DC)Measuring method: Current- voltage measurement as per IEC61557-4 possible Measuring voltage: 20 VDC Short circuit current: 250 mA DC Formation of measured value: With 4-pole measurement wires on H, S, ES can be extended without additional error. Resistances > 1 Ohm in wire E can cause additional error of 5m Ohm/Ohm. Measuring range: 0.020 Ohm to 300 kOhm Display range: 0.001 Ohm to 2.999 Ohm/3.00 Ohm to 29.99 Ohm/30.0 Ohm to 299.9 Ohm/300 Ohm to 2999 Ohm/3.0 kOhm to 29.99 kOhm/30.0 kOhm to 299.9 kOhm Resolution: 0.001 Ohm/0.01 Ohm/0.1 Ohm/1 Ohm/10 Ohm/100 Ohm Accuracy: +/-(2% of rdg + 2 digit) Operating error: +/-(5% of rdg + 5 digit) Measuring sequence: Approx. 2 measurements/s Measuring time: Typical 4 second including reversal of polarity (2-pole or 4-pole) Maximum interference voltage: ? 3 V AC or DC, with higher voltages measurement will not be started Maximum inductivity: 2 Henry Maximum overload: Urms = 250V
Features

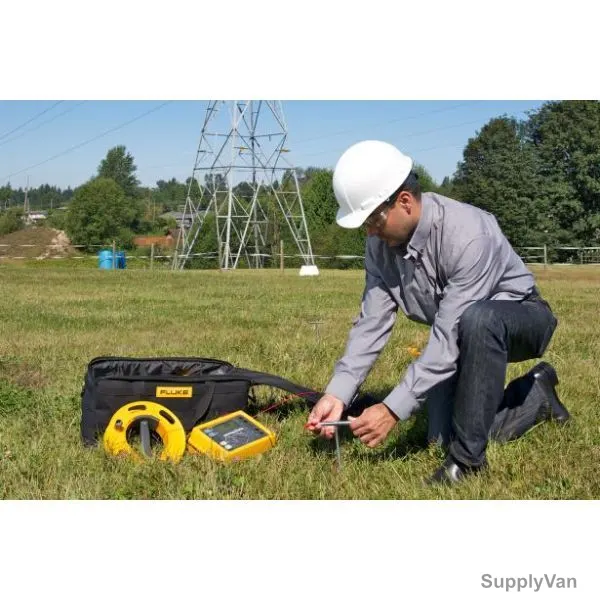

- 3- and 4-Pole Fall-of-Potential (using stakes)
- 4-Pole Soil Resistivity testing (using stakes)
- Selective testing (using 1 clamp and stakes)
- Stakeless testing (using 2 clamps only) Adjustable limits - for quicker testing
- IP56 rated for outdoor use
- Rugged carrying case
