Flir Moisture Meter With Replaceable Hygrometer, MR176, IGM, 3.7V, 0 to 50 Deg.C

Name: Flir Moisture Meter With Replaceable Hygrometer, MR176, IGM, 3.7V, 0 to 50 Deg.C
Brand: Flir
SKU: flir-mr176
Price: 3425.00 AED
Availability: InStock

SV Code: 833847622538

AED 4,981.00/ Piece

Price includes VATMore Details

In stock — ships today

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	833847622538
Brand	Flir
Category	Moisture Meters
Unit	Piece
Standards	Class 2, EN 61326, EN 60825-1
Display Type	QVGA TFT
Certification	CE, RCM, FCC Class B
Battery Type	Li-ion
Resolution	0.1
Battery Capacity	3000 mAh
Battery Voltage	3.7 V
Display Resolution	320 x 240p
Humidity	0 to 100% RH
Dew Point Temperature	-30 to 50 Deg.C
Field of View	51 x 38 Degree (W x H)
Run Time	18 hrs
Display Size	2.3 Inch
Vapor Pressure	0.0-12.0 kPa
Charging Port Type	USB
Air Temperature	0 to 50 Deg.C
Mixing Ratio By Weight	0 to 560GPP (0.0 to 80.0 g/kg) kg
Delivery	On our shelf and ready to go out today.

Description

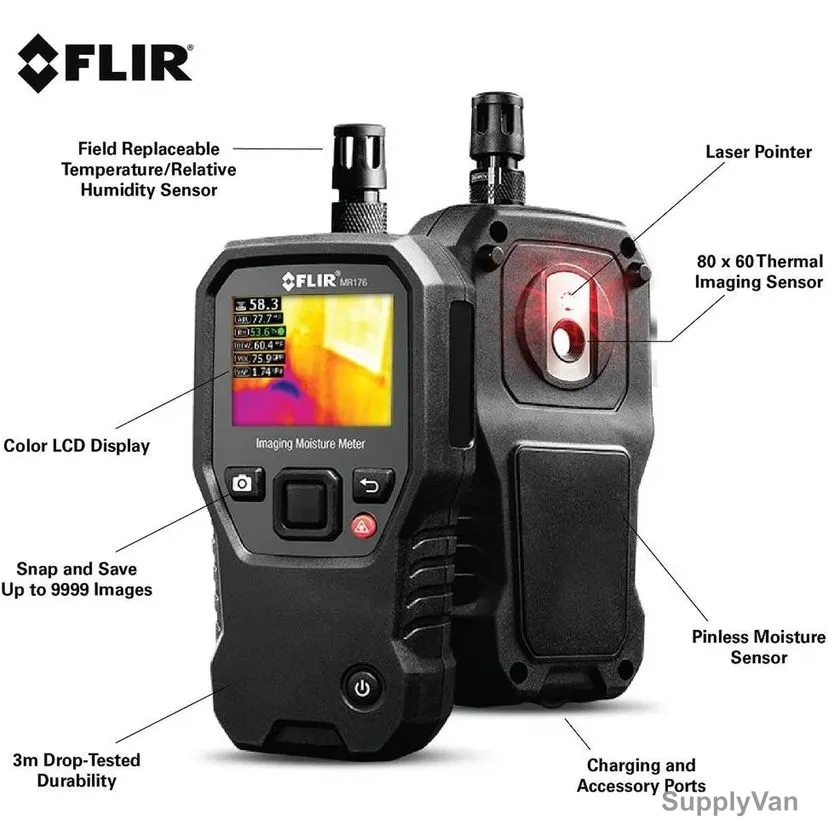

Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton 80 x 60 thermal imaging sensor, the MR176 visually guides you to the precise spot that moisture may be hiding. Use the integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements. A field-replaceable temperature and relative humidity sensor delivers added convenience.

Specification

Gallery: 17540

Image Update Speed Frequency: 9Hz

Imaging Detector: FLIR Lepton microbolometer

Spectral Response: 8 to 14µm

Thermal Image Minimum Focus Distance: 4 Inch (10cm)

Thermal Image Palettes: Iron, Rainbow, Ice, Greyscale

Thermal Image Resolution (W x H): 4800p (80 x 60)

Detection Limit: 49 sq.cm

Image Calibration: Automatic with manual lock scale option

Measurement Resolution: 0.1

Pin Moisture Range: 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only

Pin Moisture Groups: 9 Material Groups

Pinless Measurement Depth: 0.75 Inch (19mm) Max

Pinless Moisture Range: 0 to 100

Response Time Pin Mode: 750ms

Response Time Pinless: 100ms

Saved Image File format: BMP with measurement values overlaid

Stored Image Capacity: 9999 images

Sensitivity: <150mK

Features

IGM helps you visually identify hidden moisture so you’ll know exactly where to place the meter probe for further investigation
The field-replaceable temperature and relative humidity sensor can simply be removed and replaced when needed to reduce unnecessary downtime
Get more done with the easy-to-navigate menu system. Share readings and images, and quickly create reports with free FLIR Tools software
