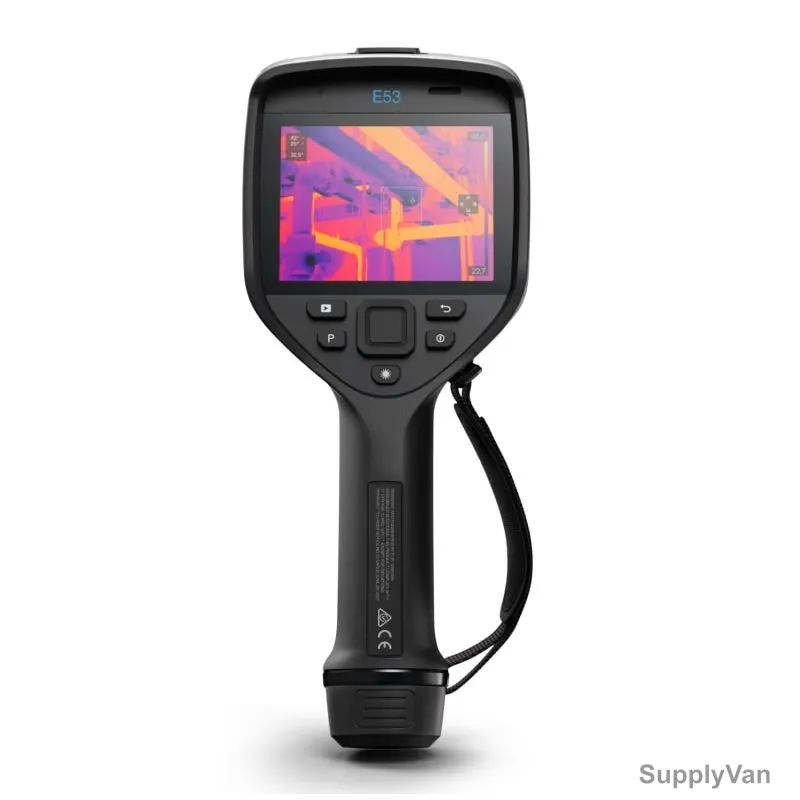

Flir Advanced Thermal Imaging Camera, E53, 240 x 180p, -20 to 650 Deg.C
SV Code: 946864823346
Model No.: E53
AED 16,386.85/ Piece
Price includes VATMore Details
Available in 7 working days
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Fast UAE delivery
Genuine & warranty
Bulk quotes
Specifications
| SV Code | 946864823346 |
| Brand | Flir |
| Category | Thermal Imager |
| Unit | Piece |
| Article Number | 84502-0201 |
| Brand Origin (not manufacture) | United States |
| Color | Black |
| Special Features | MSX, METERLiNK(TM), WiFi, Image Annotation, Compass, GPS, Video Recording, Streaming, 4X Zoom |
| Display Type | 4.0 Inch Touch Screen Color LCD with auto rotation |
| Battery Type | Li-Ion |
| Temp Range | -20 to 650 Deg.C |
| Storage Temp | -40 to 70 Deg.C |
| Accuracy | +/-2.0 percent or +/-2.0 Deg.C |
| Resolution | 5MP |
| Operating Time | Battery: Approx 2.5 Hrs at 25 Deg.C |
| Operating Temp | -15 to 50 Deg.C |
| Display Resolution | 640 x 480p |
| Spectral Response | 7.5 to 14.0 mum |
| Temp Range F | -4 to 1200 Deg.F |
| Digital Zoom | 1 to 4x Continuous |
| Maximum Aperture | F/1.3 |
| Frame Rate | 30 Hz |
| Storage Media | 8GB Removable SD card |
| Detector Resolution | 240 x 180p (43,200p) |
| Thermal Sensitivity | <0.04 Deg.C at 30 Deg.C (86 Deg.F), 24 Deg lens |
| Field of View | 53 x 41 Degree |
| Emissivity | Adjustable 0.10 to 1.10 |
| Removable Memory Card | Yes |
| Focus Method | Manual |
| Focus Range | 0.15 Mtrs to Infinity |
| Visual Light Resolution | 5.0 MP |
| Detector Type | Uncooled Microbolometer |
| Focal Length | 18 mm |
| Spectral Range | 7.5-14.0 micron |
| Temperature Range | -20 to 650 Deg.C |
| Operating Temperature | -15 to 50 Deg.C |
| Storage Temperature | -40 to 70 Deg.C |
| Pitch | 17 ?m |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description
The FLIR E53 is your entry into the Exx-Series, with the resolution and sensitivity you need at the right price. The 240 × 180 true native resolution offers more than 43,200 points of temperature measurement and produces crisp, vibrant imagery, which can be enhanced with FLIR's patented MSX for added perspective.
Features
- High-resolution infrared detector for crisp, detailed images
- Wide temperature ranges with optional calibrations up to 1500°C (2732°F)
- Superior spot-size performance for accurate temperature measurements on smaller, more distant targets
- Detect temperature differences as small as <0.04°C (24° lens) for immediate identification of failing components
- MSX image enhancement adds the depth and detail to image
- Rapid-response touchscreen with intuitive new user interface
- Convenient menu buttons allow for one-handed operation
- New folder and naming structure that makes finding images easier
- Connect over Wi-Fi to mobile devices or via METER Link to FLIR clamps and multimeters
- Color Palettes: Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
- Standards: EMC, Radio Spectrum, Encapsulation, Shock, Vibration, Drop, Safety
- Multiple Lens Option: Yes, Thermal and Visible Light Blending: Yes
