Huanyang VFD Inverter for Spindle Motor, HY01D523B, 1.5kW, 2.8kVA, 220V

Name: Huanyang VFD Inverter for Spindle Motor, HY01D523B, 1.5kW, 2.8kVA, 220V
Brand: Huanyang
SKU: huanyang-hy01d523b
Price: 1300.00 AED
Availability: PreOrder

SV Code: 481472548354

AED 1,300.00/ Piece

Price includes VATMore Details

Available in 7 working days

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	481472548354
Brand	Huanyang
Category	Motor Speed Controls
Unit	Piece
For Use With	CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuge Machine and other speed control machines.
Application	Metallurgy, petroleum, chemical, textile, electricity, building material, coal, medicine, food, paper making, plastic, printing, lifting, cable, washing, water supply, HVAC, sewage disposal and other industries.
Capacity	2.8 kVA
Items Included	1 x HuanYang Drive, 1 x User Manual
Power	1.5 kW
Source Ref	B07N6NG7WX
Input Voltage	220V, single phase or three phase
Output Current	7 A
Frequency	Input: 47-63Hz, Output: 0-50Hz / 0-400Hz
Output Voltage	220V, three phase
Delivery	Not on the shelf right now; 7 working days to source and deliver.

Description

Huanyang VFD Inverter for Spindle Motor, HY01D523B, 1.5kW, 2.8kVA, 220V. Genuine Huanyang product supplied by SupplyVan. For bulk pricing, contract rates, or technical data sheets, request a quote and our team will respond with account pricing and availability.

Features

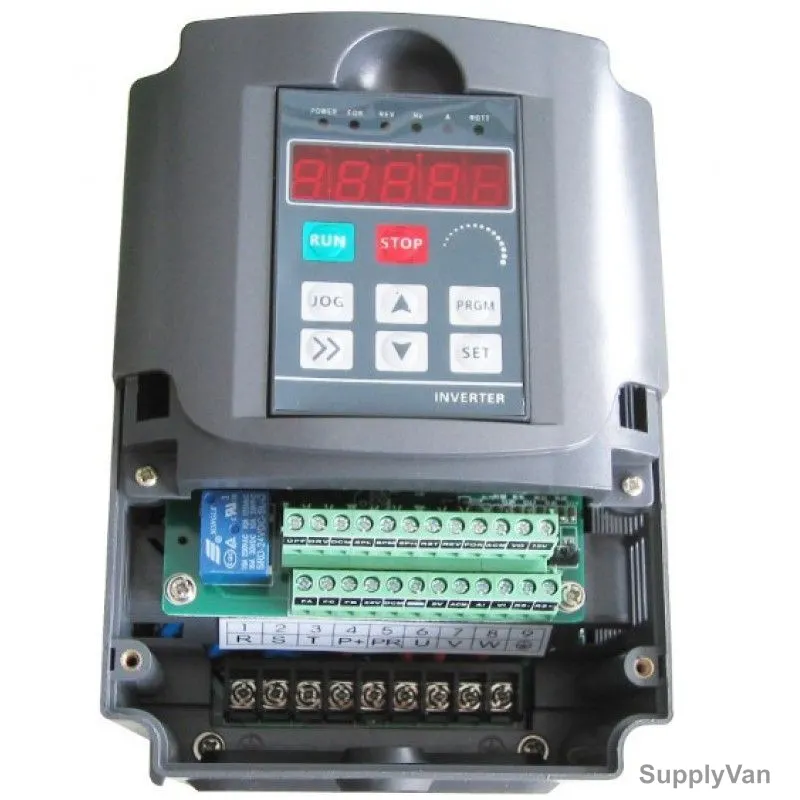

Programmable Digital Input: Provide 7 terminals which can support ON-OFF inputs, 1 terminal which can support high speed pulse input and PNP, NPN
Programmable Analog Input: AI1 can accept input of -10V-10V, AI2 can accept input 0-10V or 0-20mA
Programmable Open Collector Output: Provide 1 output terminal (open collector output or high speed pulse output)
Relay Output: Provide 1 output terminal
Analog Output: Provide 2 output terminal, whose output range can be 0/4-20mA or 0-10V, as chosen
Control Mode: V/F, Sensor less Vector Control (SVC), Torque control
Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current
Speed Adjusting Range: 1:100 (SVC), Carrier Frequency: 1kHz - 15.0kHz
Frequency reference source: keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID setting. The combination of multi-modes and the switch between different modes can be realized
PID Control Function, Simple PLC, Multi-Steps Speed Control Function: 16 stages speed can be set, Traverse Control Function
None-Stop when instantaneous power off, Speed Trace Function: Smoothly start the running motor
QUICK/JOG Key: User defined shortcut key can be realized
Automatic Voltage Regulation Function (AVR)
Automatically keep the output voltage stable when input voltage fluctuating
Fault protections: Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.
