Hioki Analog Insulation Tester, IR4017-20, 600V

Name: Hioki Analog Insulation Tester, IR4017-20, 600V
Brand: Hioki
SKU: hioki-ir4017-20
Price: 800.00 AED
Availability: InStock

SV Code: 552287925744

Model No.: IR4017-20

AED 669.00AED 800.00-16%/ Piece

Price includes VATMore Details

In stock — ships today

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	552287925744
Brand	Hioki
Category	Insulation Testers
Unit	Piece
Brand Origin (not manufacture)	Japan
Dimension (L x B x H)	5.3L x 15.9B x 17.7H cm
Voltage	600 VAC
Display Type	LCD
Accessories Included	Test Lead L9787, 4x LR6 (AA) alkaline batteries, Instruction manual, Shoulder strap
Measuring Voltage Range - AC	0/600V
Battery Life	20 hrs
Measuring Resistance Range	1000Mohm
Measuring Frequency Range	50/60Hz
Battery Size	AA
AC Voltage Accuracy	+/-5%
DC Voltage Accuracy	+/-2%
Resistance Accuracy	+/-2%
Frequency Accuracy	+/-5%
Number Of Battery	4
Battery Chemistry Filter	Alkaline
Delivery	On our shelf and ready to go out today.

Description

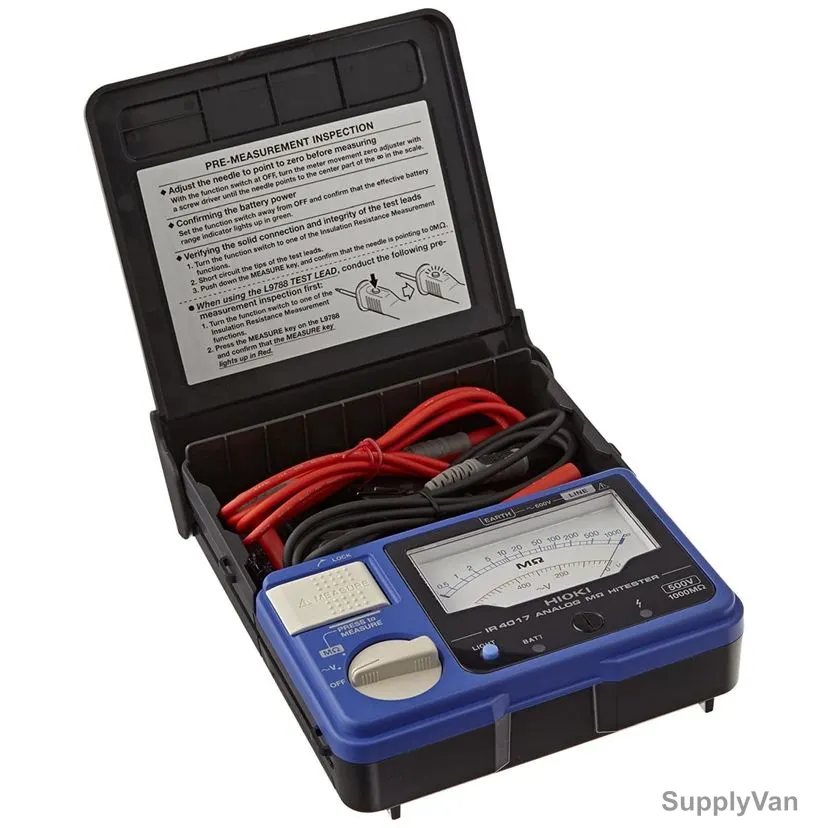

Hioki insulation testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR4017-20 is a single-range, 500V/1000MOhm analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

Features

Single range testing voltage of 500V
Test insulation resistance up to 1000 Mohm
Built tough to withstand a 1-meter drop onto a concrete floor
Bright LED luminous scale
Check for live circuits and battery status
Integrated hard case for quick and easy storage without disconnecting the leads
Lower limit resistance: 0.5 MOhm (measurement resistance value to maintain testing voltage)
