Fluke Process Calibrator Multimeter, 789, 1000VAC, Black/Yellow
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Specifications
| SV Code | 665374872291 |
| Brand | Fluke |
| Category | Handheld Loop and Process Calibrators |
| Unit | Piece |
| Brand Origin (not manufacture) | United States |
| Warranty | 3 yr. |
| Dimension (L x B x H) | 20.3L x 10B x 5H cm |
| Color | Black and Yellow |
| Amps | 1A AC/30mA/1A DC |
| Battery Type | Alkaline |
| Resolution | 0.1 mV to 1.0V |
| Accessories Included | 1x AC175 Alligator Clips, 4x AA 1.5 V alkaline batteries (installed), 1x TL71 safety-designed test lead set |
| Operating Temp | -20 to 55 Deg.C |
| Measuring Voltage Range - DC | 400mV/4/40/400/1000 |
| Measuring Voltage Range - AC | 400mV/4/40/400/1000 |
| Battery Life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) |
| Measuring Resistance Range | 400/4K/40K/400K/4M/40M |
| Measuring Frequency Range | 19.999 kHz, 0.005% + 1 LSD |
| Humidity | 95% up to 30 Deg.C, 75% up to 40 Deg.C, 45% up to 50 Deg.C, 35% up to 55 Deg.C |
| Battery Size | AA |
| Maximum Voltage(no load) | 1000V RMS |
| Number of Batteries | 4 |
| Temperature Coefficient | 0.05 x (specified accuracy) per Deg.C (for temperatures < 18 Deg.C or > 28 Deg.C) |
| DC Voltage Accuracy | 0.1% Rdg + 1 LSD (VDC) |
| Storage Temperature | -40 to 60 Deg.C |
| Delivery | On our shelf and ready to go out today. |
Description

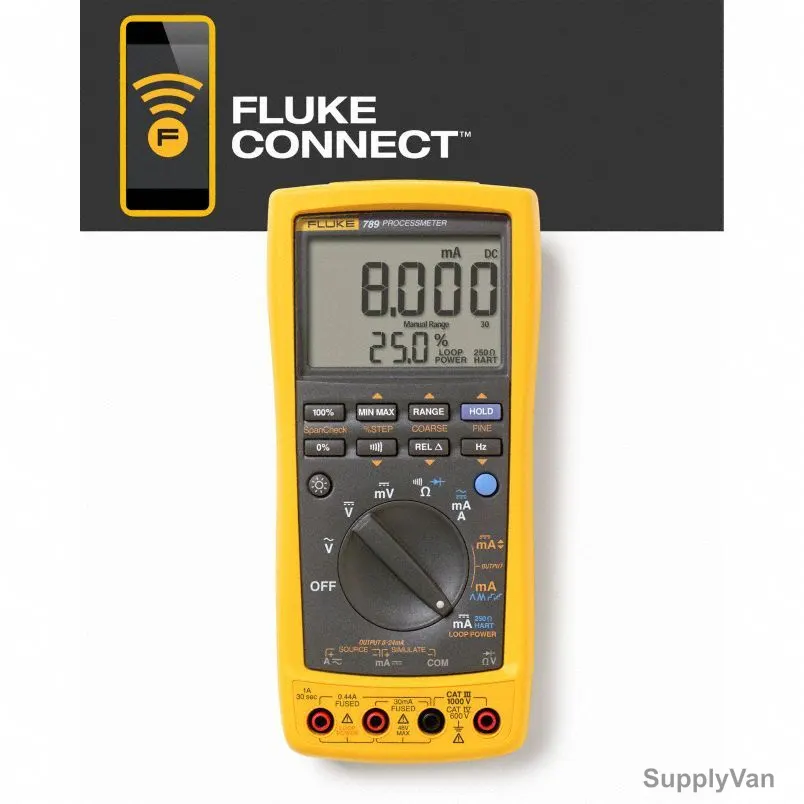

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals. It combines the functionality of a full-featured loop calibrator with the power of a CAT III 1000 V, CAT IV 600 V safety rated digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module. The 789 has a large, dual display with two levels of backlighting and externally accessible fuse and batteries for easy replacement. And its built-in, selectable 250-ohm HART resistor eliminates the need to carry a separate resistor.

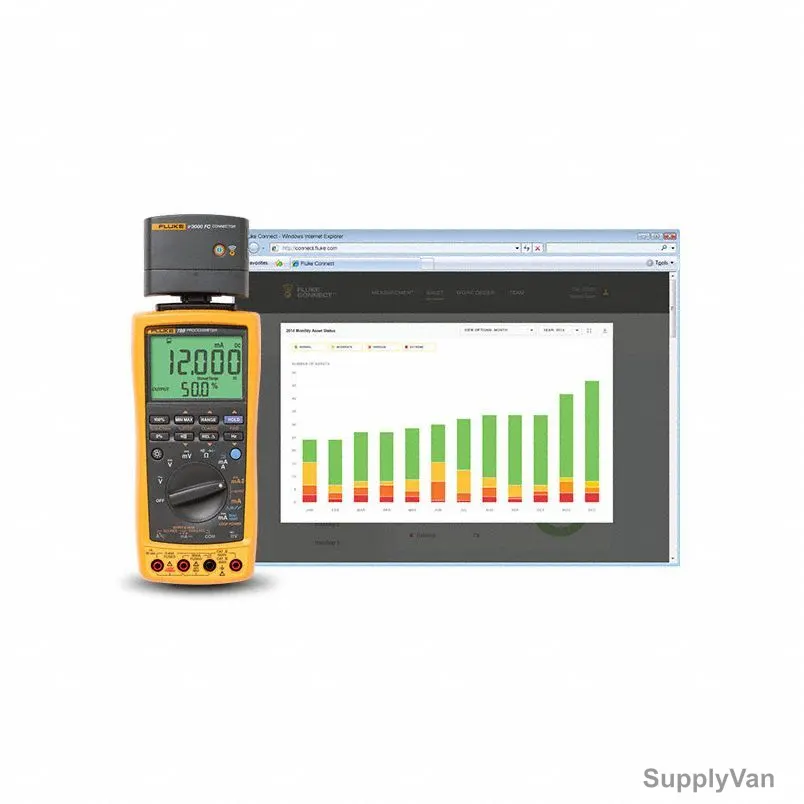

The 789 also has a built-in 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing. You can also add the wireless data logging capabilities of the Fluke Connect mobile app to log data wirelessly to your smart phone and review it from a remote location.
Do a lot more while carrying a lot lessThe 789 provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper. Combine that with the ability to troubleshoot every part of the loop.
Measure, source, simulate 4-20 mA signals, measure resistance, measure power, provide power to the loop and provide 250-ohm resistance to the loop. The 789 includes SpanCheck; 0% and 100% buttons to toggle between 4 and 20 mA sourcing, while the display can simultaneously show mA and % of scale readings for faster troubleshooting. It also delivers 1200-ohm drive capability on mA source.
AccuracyThis ProcessMeter offers manual step, 100%, 25%, Coarse, Fine, plus auto step and auto ramp. It also delivers 0.1% DC voltage accuracy and 0.05% DC current accuracy.
Features
- Compact digital multimeter and mA loop calibrator solution
- Full-featured mA loop calibrator with built-in 24V Loop Power
- Quickly and easily troubleshoot every part of a control loop
- Large, bright dual-measurement display
