761347817318 · Fluke

Fluke FlukeView Forms Combo Kit, 287-FVF-EUR, 1000V

Name: Fluke FlukeView Forms Combo Kit, 287-FVF-EUR, 1000V
Brand: Fluke
SKU: fluke-287-fvf-eur
Price: 2560.00 AED
Availability: InStock

SV Code: 761347817318

AED 4,120.00/ Kit

Price includes VATMore Details

In stock — ships today

Return or exchange within 30 days of delivery

Fast UAE delivery

Genuine & warranty

Bulk quotes

Specifications

SV Code	761347817318
Brand	Fluke
Category	Digital Multimeters
Unit	Kit
Brand Origin (not manufacture)	United States
Color	Yellow and Black
Certification	EMC EN61326-1
Battery Type	Alkaline
Battery Life	100-200 hrs
Duty Cycle	0.01% to 99.99%
Battery Size	AA
Operating Temperature	-20 to +55 Deg.C
Storage Temperature	-40 to +60 Deg.C
Number Of Battery	2
Relative Humidity	0 to 90% (0 to 37Deg.C), 0 to 65% (37Deg.C to 45Deg.C), 0 to 45% (45Deg.C to 55Deg.C)
Delivery	On our shelf and ready to go out today.

Description

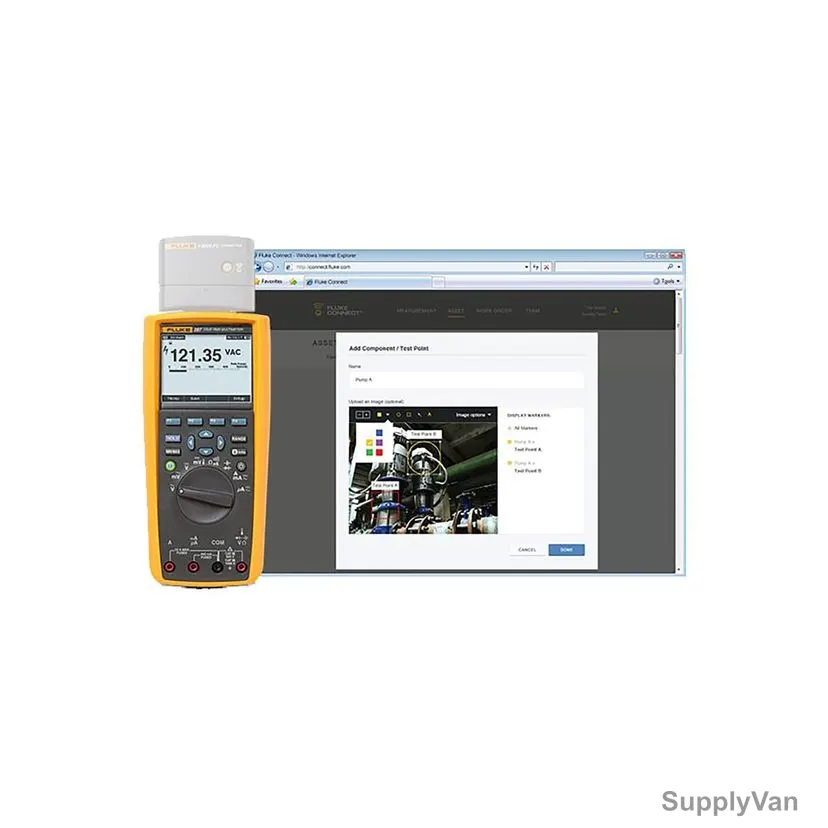

Maximize productivity with the combined Fluke 287 and FlukeView forms combo kit. Designed for today’s professionals involved in R&D, maintenance, manufacture and design of electronic circuits or systems. With built-in data logger and TrendCapture (the meters on screen graphical display) capability, the 287 helps you track down elusive, intermittent problems or monitor equipment with any of its functions. FlukeView Forms enables you to document, store, and analyze individual readings or series of measurements, overlay logged data to find cause and affect relationships, or turn your data into meaningful graphs and tables for a professional report. The 287 is compatible with the new Fluke ir3000 FC Infrared Connector, allowing you to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. The 287/FVF combo kit gives you a practical and affordable approach to documenting circuit design performance.
Specifications:

AC Voltage Range/Resolution: 50.000 mV, 500.00 mV, 5.0000V, 50.000V, 500.00V, 1000.0V

AC Voltage Accuracy: 0.4% (True-RMS)

DC Voltage Range/Resolution: 50.000 mV, 500.00 mV, 5.0000V, 50.000V, 500.00V, 1000.0V

DC Voltage Accuracy: 0.025%

DC current Range/Resolution: 500.00 ?A, 5000.0 ?A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

DC current Accuracy: 0.05%

AC current Range/Resolution: 500.00 ?A, 5000.0 ?A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A

AC current Accuracy: 0.6% (True-RMS)

Temperature (excluding probe) Range/resolution: -200.0 Deg.C to 1350.0 Deg.C (-328.0 Deg.F to 2462.0 Deg.F)

Temperature (excluding probe) Accuracy: 1.0%

Resistance Range/Resolution: 500.00 Ohm, 5.0000 kOhm, 50.000 kOhm, 500.00 kOhm, 5.0000 MOhm, 50.00 MOhm, 500.0 MOhm

Resistance Accuracy: 0.05%

Capacitance Range/Resolution: 1.000 n, 10.00 nF, 100.0 nF, 1.000 ?F, 10.00 ?F, 100.0 ?F, 1000 ?F, 10.00 mF, 100 mF

Capacitance Accuracy: 1.0%

Frequency Range/Resolution: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz

Frequency Accuracy: 0.005%

Maximum voltage between any terminal and earth ground: 1000V

Vibration: Random vibration per MIL-PRF-28800F Class 2

Shock: 1 meter drop per IEC/EN 61010-1 3rd Edition

Multiple on screen displays: Yes

True-RMS AC bandwidth: 100 kHz

dBV/dBm: Yes

DC mV resolution: 1 ?V

Megohm range: Up to 500 MOhm

Conductance: 50.00 nS

Continuity beeper: Yes

Battery/fuse access: Yes/Yes

Elapse time clock: Yes

Time of day clock: Yes

Min-max-avg: Yes

Peak: 250 ?s

Pulse width: 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms

Logging memory: Up to 10,000 readings

Wireless connectivity (optional): Yes

Features

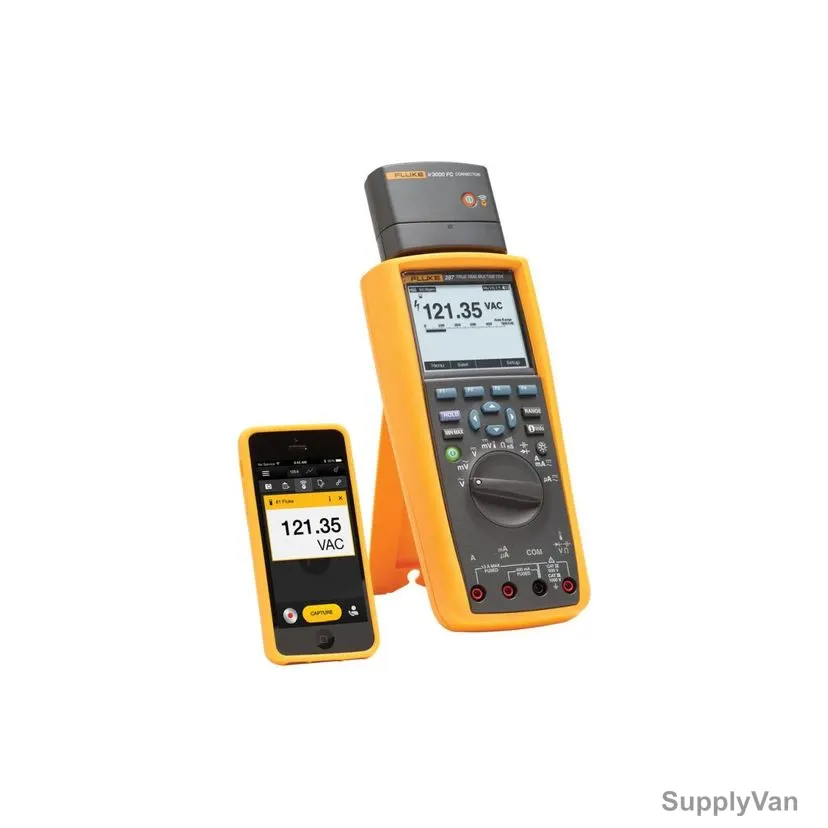

Now compatible with Fluke Connect mobile app and all Fluke FC enabled test tools with optional ir3000 FC infrared connector (sold separately)
Let your team see what you see in an instant with ShareLive video call (requires Fluke Connect mobile app and ir3000 FC wireless connector)
TrendCapture quickly graphically displays logged data session to quickly determine whether anomalies may have occurred
Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times
Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy
Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event

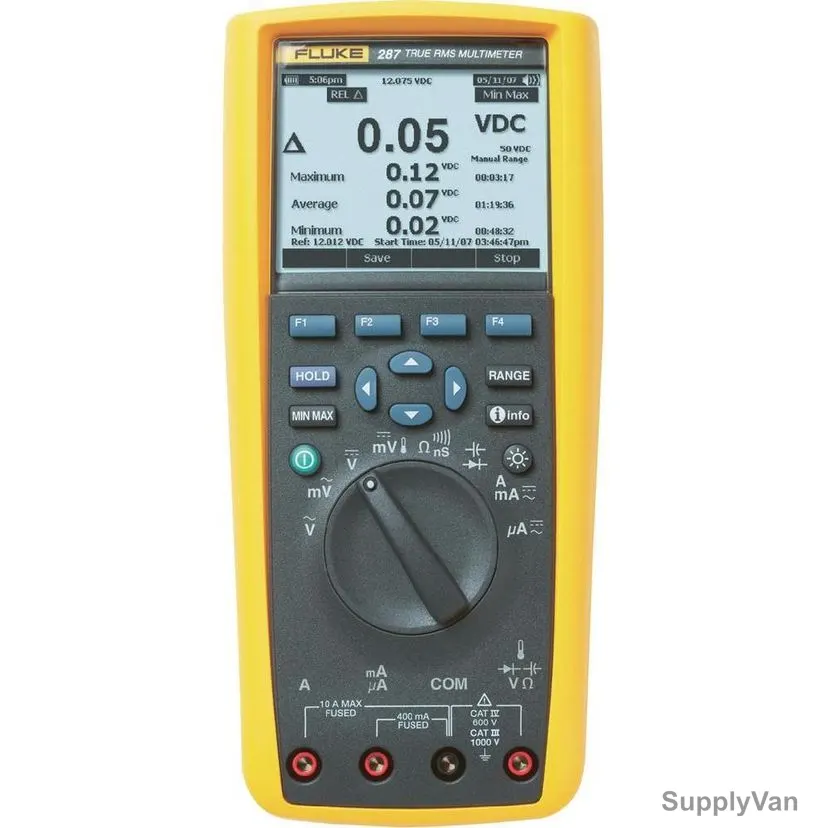

Large 50,000 count, 1/4 VGA display with white backlight. Multiple sets of measurement information can be simultaneously displayed at the same time
On board help screens for measurement functions
Saved measurements allow you to name and recall measurements made in the field
Multi-lingual interface
Multiple logging sessions possible without download
Real time clock for automatic time stamping of saved readings
Relative mode to remove test lead resistance from low ohms or capacitance measurements

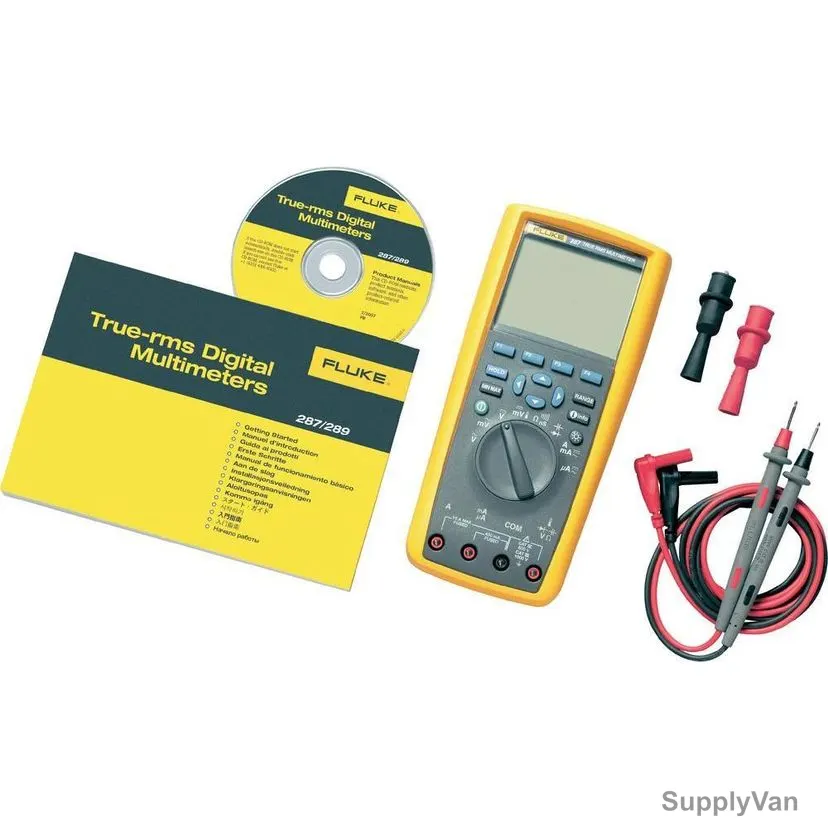

Premium test leads and alligator clips included
Amp jack plugs included
