AR Vacuum Bellow Vacuum Cup, VFR85SB, Silicone, G-1/2 Inch Female Thread, 85MM Dia, 120 Cu.CM Volume Capacity
Return or exchange within 30 days of delivery
Sign in to see your account price and place orders.
Specifications
| SV Code | 557149644628 |
| Brand | AR Vacuum |
| Category | Manual Lifting and Mounting Suction Cups |
| Unit | Piece |
| Brand Origin (not manufacture) | Spain |
| Color | White |
| Material | Silicone |
| Application | Flat surfaces, Curved surfaces, Horizontal handling, Vertical handling, Hard grip |
| Fasteners Thread Type | Female |
| Thread Size | G-1/2 Inch |
| Volume Capacity | 120 cu.cm |
| Strokes | 20 mm |
| Delivery | Not on the shelf right now; 7 working days to source and deliver. |
Description

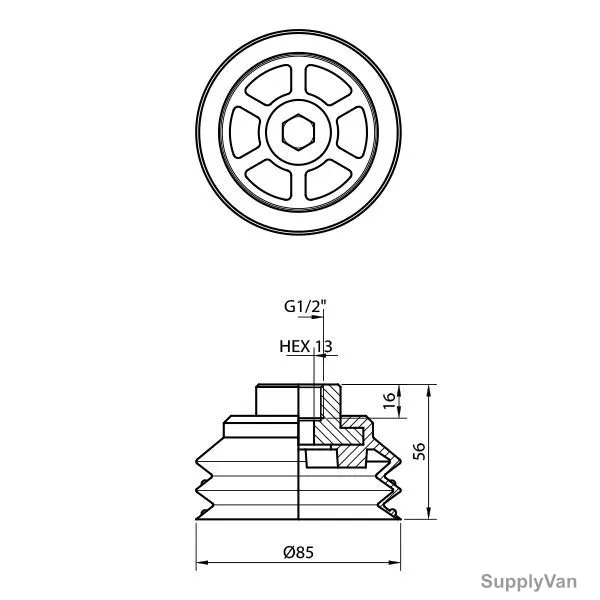

The AR Vacuum Bellow Vacuum Cup, model VFR85SB, is a suction cup designed for use with vacuum handling equipment. It features a silicone construction and a G-1/2 inch female thread for attachment to vacuum handling systems. The cup has a diameter of 85mm and a volume capacity of 120 cubic centimeters. The bellows design provides flexibility and adaptability to various shapes and sizes of objects. This suction cup is commonly used in industrial settings for handling glass, metal, plastics, and other materials.
Features
- Rigid structure
- Large internal volume
- Unloaded Diameter: 85mm
- Loaded Diameter: 86.5mm
- Minimum Curve Radius: 47.5mm
- Number of Folds: 2.5
- Force at -0.4 bar: 15.5 Kgf
- Force at -0.6 bar: 21.5 Kgf
- Force at -0.8 bar: 28.2 Kgf
- Force at -0.9 bar: 30.9 Kgf
